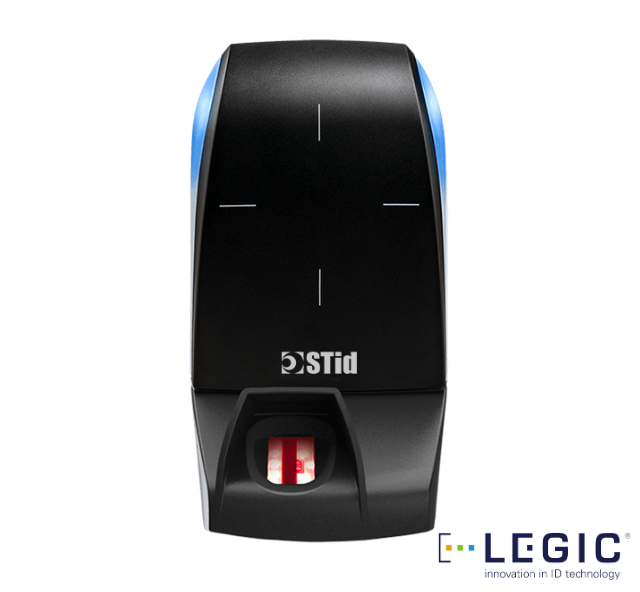

Architect® LEGIC® Biometrics
The Architect® biometric reader combines the RFID LEGIC® Advant technologies with digital fingerprint recognition to ensure a strong authentication of the user and enhance the security of your access control system.
Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.
Welcome to High Security
The reader Architect® uses the latest LEGIC® Advant contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (AES, RSA, SHA, etc.), which are recommended by official data security agencies.
Strong Two-Factor Authentication
The reader combines the reading of a secure LEGIC® Advant credential with the fingerprint identification to enhance the security levels.
Fingerprints are converted into a template, meaning no image is ever saved. Templates stored on the card or server are then also encrypted and signed to guarantee the confidentiality, the origin and the integrity of the data.
Effortless Fingerprint Control
The biometric reader offers a different options to suit your needs:
• Fingerprint templates stored on the RFID card, ensuring compliance with CNIL French and GDPR European legislation.
• Templates stored within the system.
• Biometric exemption with card-only mode, ideal for one-time visitors or individuals with challenging fingerprints.
-
custom
Black
White
Test lighting effect opting for a color
Test your own brand adding your logo
Monochrome or Quadri ?
-
protocols
Wiegand
SSCP®
-
technologies
13.56 MHz LEGIC®
-
Frequency13.56 MHz
-
StandardISO14443 type A, ISO15693, LEGIC® RF
-
13.56 MHz CredentialsLEGIC® Advant & Prime
-
KeypadReader_KeypadUndefined
-
Reader_AntennaReader_Antenna_Standard
-
Wiegand InterfaceWiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom
-
Clock & DataClock&Data 32 bits, 40 bits or custom
-
RS232RS232 output
-
RS485RS485 output
-
Light Indicator2 RGB LEDs - 360 colors
-
Tamper DetectionAccelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
-
Inputs/OutputsSolid State Relay | Output Voltage: 60V - Output Current: 0.2A - Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
-
ConfigurationsConfiguration by software, or controlled by external command (0V) depending on the interface
-
Operating Voltage7 - 28 VDC
-
Operating Temperature-10°C / +50°Cn14°F / +122°F
-
MountingWall-mounted
-
CertificationsCE (Europe), RoHS
-
Range0 - 6 cm / 0 - 2.4 in with a LEGIC® Advant card
-
Housing Materials & ColorABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
-
Dimensions & Weight149 x 80 x 71 mm / 5.63 x 3.15 x 2.80 in (general tolerance following ISO NFT 58-000 standard)
-
Connections10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal
-
Current Draw280 mA/12 VDC max
-
ResistanceIP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
-
TTL (Wiegand / Clock&Data)
-
Secure Private IDARC-R31-O/LE2-xx/y
-
-
Secure Private IDARC-R33-O/LE2-7AB/y
-
Secure Private IDARC-R32-O/LE2-5AB/y
-
SSCP® v1 protocolARC-W33-O/LE2-7AA/y
-
SSCP® v1 protocolARC-W32-O/LE2-5AA/y
