Architect® LEGIC® Touchscreen & Biometrics

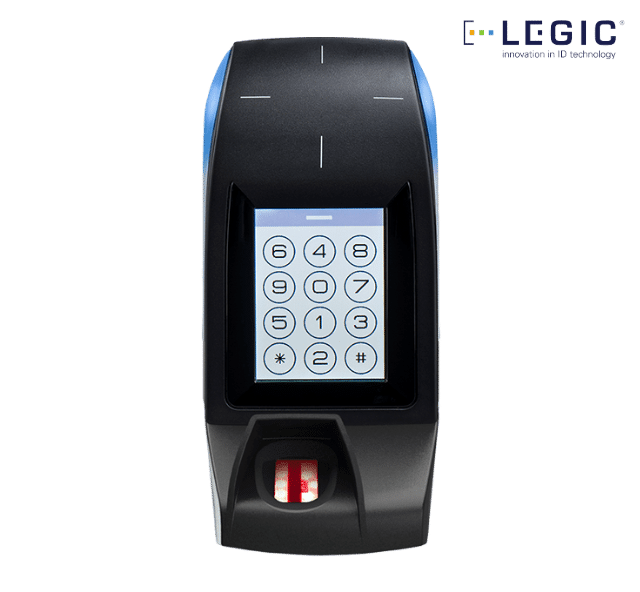

13.56 MHz LEGIC® Biometric Touchscreen Keypad Reader

The Architect® biometric reader enhances the security of your access control system and provides strong multi-factor authentication by combining open LEGIC® Advant technologies, a touchscreen / keypad and a fingerprint sensor.

An Intuitive Display Experience
Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Strong Multi-Factor Authentication
The reader combines the reading of a secure LEGIC® Advant credential with fingerprint identification and PIN entry to enhance security levels.
Fingerprints are converted into a template, meaning no image is ever saved. Templates stored on the card or server are then also encrypted and signed to guarantee the confidentiality, the origin and the integrity of the data.

  • custom

    Black

    White

    Test lighting effect opting for a color

  • protocols

    Wiegand

    SSCP®

  • technologies

    13.56 MHz LEGIC®

  • Frequency
    13.56 MHz
  • Standard
    ISO14443 type A, ISO15693, LEGIC® RF
  • 13.56 MHz Credentials
    LEGIC® Advant & Prime
  • Keypad
    Reader_KeypadUndefined
  • Touchscreen
    Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8’’ - 240 x 320 pixels | Features - Display of texts, images, and on-screen keypad
  • Reader_Antenna
    Reader_Antenna_Touchscreen
  • Wiegand Interface
    Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom
  • Clock & Data
    Clock&Data 32 bits, 40 bits or custom
  • RS232
    RS232 output
  • RS485
    RS485 output
  • Light Indicator
    2 RGB LEDs - 360 colors
  • Tamper Detection
    Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
  • Inputs/Outputs
    Solid State Relay | Output Voltage: 60V - Output Current: 0.2A - Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
  • Configurations
    Configuration by software, or controlled by external command (0V) depending on the interface
  • Operating Voltage
    7 - 28 VDC
  • Operating Temperature
    -10°C / +50°Cn14°F / +122°F
  • Mounting
    Wall-mounted
  • Certifications
    CE (Europe), RoHS
  • Current Draw
    350 mA/12 VDC max
  • Resistance
    IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
  • Range
    0 - 4 cm / 0 - 1.6 in with a LEGIC® Advant card
  • Housing Materials & Color
    ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Connections
    10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal
  • Dimensions & Weight
    166 x 80 x 71 mm / 6.54 x 3.15 x 2.80 in (general tolerance following ISO NFT 58-000 standard)
  • SSCP Protocols
    • SSCP® v1 protocol
      ARC-W33-Q/LE2-7AA/y
    • SSCP® v1 protocol
      ARC-W32-Q/LE2-5AA/y
  • TTL (Wiegand / Clock&Data)
    • Secure Private ID
      ARC-R31-Q/LE2-xx/y
  • RS232
    • Secure Private ID
      ARC-R32-Q/LE2-5AB/y
  • RS485
    • Secure Private ID
      ARC-R33-Q/LE2-7AB/y
