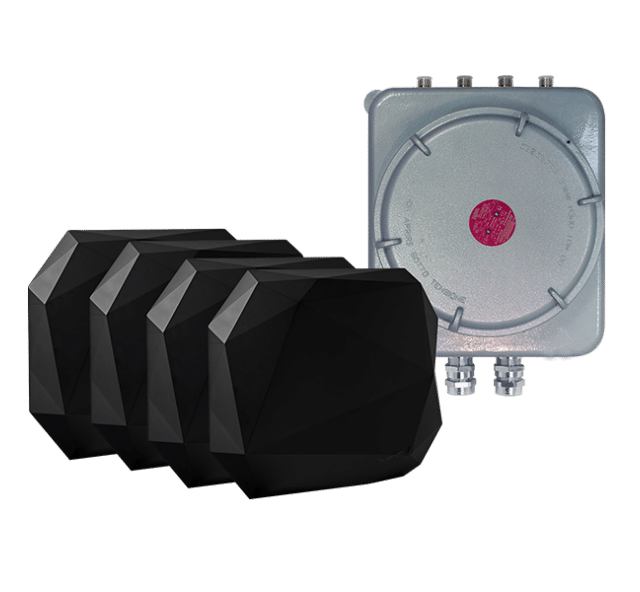

ATX4 UHF Multi-Antenna

ATEX & IECEx Certified UHF Long-Range Multi-Antenna Reader

The ATX4 UHF reader is a high-performance, ATEX and IECEx-certified solution designed for seamless vehicle or driver identification in explosive environments. With its multi-antenna capabilities, advanced security, and scalable design, it ensures secure and fluid access control for high-risk industries while optimizing costs and efficiency.

More information

Contact us

Exceptional Security Standards
The ATX4 UHF reader delivers unparalleled security by signing UHF credentials autonomously with encryption methods recommended by leading cybersecurity bodies such as ANSSI or FIPS. This ensures complete data protection and peace of mind for operations in sensitive environments.

ATEX & IECEx Certified Reader
The ATX4 reader is ATEX (EN60079) & IECEx certified and complies with both European Directives (99/92/CE and 94/9/CE). It is used for all the long range identification application in:
• the chemical and petrochemical industries,
• oil and gas refineries,
• nuclear power plants,
• mines.

Unmatched Performance and Scalability
Offering identification ranges of up to 10 meters (33 feet), the ATX4 ensures reliable and efficient access control without compromising safety. Its modular design, featuring four independent antennas, provides flexibility to adapt to multi-lane applications and evolving security needs.

Seamless Integration and Interoperability
Built on EPC1 Gen2 and ISO18000-63 standards, the reader integrates effortlessly with any access control system. It supports a variety of interfaces (Wiegand, Clock&Data, RS485, RS232) and protocols (OSDP™ v1 & v2, SSCP® v1 & v2), making it a versatile and future-proof solution.

protocols

Wiegand

SSCP®

OSDP™
technologies

UHF
Frequency

UHF
Standard

ISO18000-63 | 865 - 868 MHz: 866 MHz ETSI - Europe / Middle-East, Morocco (regulation n°ANRT/DG/n°7-10) | 902 - 928 MHz: 915 MHz FCC Part 15 - USA / North America , Australia, New Zealand, Philippines, Peru
UHF Credentials

EPC1 GEN2 tags & credentials
Keypad

Reader_KeypadUndefined
Reader_Antenna

Reader_Antenna_0
Wiegand Interface

Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom
Clock & Data

Clock&Data 32 bits, 40 bits or custom
RS232

RS232 output
RS485

RS485 output
SSCP Protocol

RS485 and RS232 outputs - Controlled by SSCP® v1 & v2 secure communication protocols
Inputs/Outputs

4 inputs (to manage the reader activation, ground loop, presence sensor...) 4 outputs (to external traffic lights control...)
Configurations

Configuration by UHF card, software, or controlled by external command (0V) depending on the interface
Operating Voltage

7 - 28 VDC
Operating Temperature

-20°C / +50°Cn-4°F / +122°F
Robustness

IK10 Certified
Mounting

4 mounting brackets on the enclosure | Compatible with universal VESA 200 x 200 mounting kits (requires a mounting accessory)
Certifications

CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS, ATEX (EN60079) & IECEx
Connections

Plug-in connector / 2 PE PAP-R0 M20 cable glands for external shielded cables. 10-19 mm (0.39-0.75 in)
Resistance

Explosion-proof enclosure Ex II 2 GD IP66 - Resistant to explosions, weather, water, and dust / IEC60068-2-6 / MIL-STD-810
Current Draw

1.2 A/12 VDC typical / 1.5 A/12 VDC max
Range

0 - 10 m / 0 - 33 ft with a STid ETA passive label
Dimensions & Weight

310 x 270 x 174 mm / 12.2 x 10.63 x 6.85 in (general tolerance following ISO NFT 58-000 standard) Weight: 13.5 kg / 476.2 oz
Housing Materials & Color

Copper-free marine-grade aluminum, RAL 9006 gray epoxy

RS485
- Low Band 865-868 MHz

  ATX4-R43-A/U04-7AB/3
- Upper Band 902-928 MHz

  ATX4-R53-A/U04-7AB/3
- Morocco (regulation n°ANRT/DG/n°7-10)

  ATX4-R43-A/U04-7AB/3M
- Australia

  ATX4-R53-A/U04-7AB/3AU
- New Zealand

  ATX4-R53-A/U04-7AB/3NZ
- Peru

  ATX4-R53-A/U04-7AB/3PE
- Philippines

  ATX4-R53-A/U04-7AB/3PH
OSDP Protocols
- Low Band 865-868 MHz

  ATX4-W43-A/U04-7OS/3
- Upper Band 902-928 MHz

  ATX4-W53-A/U04-7OS/3
- Morocco (regulation n°ANRT/DG/n°7-10)

  ATX4-W43-A/U04-7OS/3M
- Australia

  ATX4-W53-A/U04-7OS/3AU
- New Zealand

  ATX4-W53-A/U04-7OS/3NZ
- Peru

  ATX4-W53-A/U04-7OS/3PE
- Philippines

  ATX4-W53-A/U04-7OS/3PH
TTL (Wiegand / Clock&Data)
- Low Band 865-868 MHz

  ATX4-R41-A/U04-xx/3
- Upper Band 902-928 MHz

  ATX4-R51-A/U04-xx/3
- Morocco (regulation n°ANRT/DG/n°7-10)

  ATX4-R41-A/U04-xx/3M
- Australia

  ATX4-R51-A/U04-xx/3AU
- New Zealand

  ATX4-R51-A/U04-xx/3NZ
- Peru

  ATX4-R51-A/U04-xx/3PE
- Philippines

  ATX4-R51-A/U04-xx/3PH
SSCP Protocols
- Low Band 865-868 MHz

  ATX4-W43-A/U04-7AX/3
- Upper Band 902-928 MHz

  ATX4-W53-A/U04-7AX/3
- Morocco (regulation n°ANRT/DG/n°7-10)

  ATX4-W43-A/U04-7AX/3M
- Australia

  ATX4-W53-A/U04-7AX/3AU
- New Zealand

  ATX4-W53-A/U04-7AX/3NZ
- Peru

  ATX4-W53-A/U04-7AX/3PE
- Philippines

  ATX4-W53-A/U04-7AX/3PH
- Low Band 865-868 MHz

  ATX4-W42-A/U04-5AX/3
- Upper Band 902-928 MHz

  ATX4-W52-A/U04-5AX/3
- Morocco (regulation n°ANRT/DG/n°7-10)

  ATX4-W42-A/U04-5AX/3M
- Australia

  ATX4-W52-A/U04-5AX/3AU
- New Zealand

  ATX4-W52-A/U04-5AX/3NZ
- Peru

  ATX4-W52-A/U04-5AX/3PE
- Philippines

  ATX4-W52-A/U04-5AX/3PH
RS232
- Low Band 865-868 MHz

  ATX4-R42-A/U04-5AB/3
- Upper Band 902-928 MHz

  ATX4-R52-A/U04-5AB/3
- Morocco (regulation n°ANRT/DG/n°7-10)

  ATX4-R42-A/U04-5AB/3M
- Australia

  ATX4-R52-A/U04-5AB/3AU
- New Zealand

  ATX4-R52-A/U04-5AB/3NZ
- Peru

  ATX4-R52-A/U04-5AB/3PE
- Philippines

  ATX4-R52-A/U04-5AB/3PH
