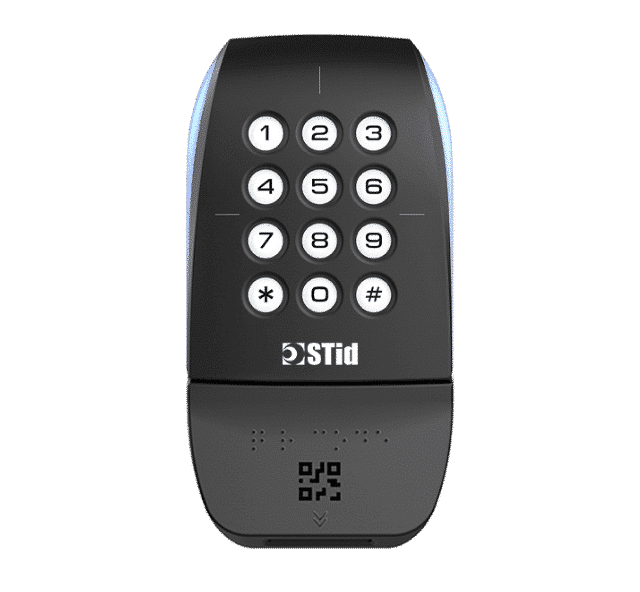

Architect® Keypad & QR Code
The Architect® keypad reader is equipped with 1D & 2D code module to enable the identification of employees and visitors. Identification by QR Code simplifies the management of temporary access in offices, parking lots or any other infrastructure.
Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.
One Device, Endless Possibilities
Unlock a world of convenience with our all-in-one reader, designed to effortlessly identify users with a wide range of profiles, from visitors and employees to tenants and drivers. Supporting multiple identification technologies – QR codes, MIFARE® DESFire® EV3 and Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet – it ensures a secure and versatile access control solution.
Reliable Performance in All Conditions
No matter the conditions, our IK08-certified reader is your go-to choice. From bright environments to reflections, indoor to outdoor use, it offers easy and reliable detection, day or night.
Multi-Functional Keypad
The keypad can be used for identification or to activate additional functions (alarm…).
The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel or the entry of codes for visitors or temporary workers.
-
custom
Black
White
Test lighting effect opting for a color
Test your own brand adding your logo
Monochrome or Quadri ?
-
protocols
Wiegand
SSCP®
OSDP™
-
technologies
Apple Wallet™
13.56 MHz MIFARE® DESFire® EV3
-
Frequency13.56 MHz
-
StandardISO14443 types A & B, ISO18092
-
13.56 MHz CredentialsMIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
-
Virtual Credential CompatibilitySTid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes
-
1D/2D Code CompatibilityQR Code (versions 1, 2 & 3), Micro QR Code, code 128, Aztec, Data Matrix
-
KeypadReader_KeypadSensitiveCardAndKey
-
Reader_AntennaReader_Antenna_Keypad
-
Wiegand InterfaceWiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
-
Clock & DataClock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
-
RS232RS232 output
-
RS485RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
-
SSCP ProtocolRS485 and RS232 outputs - Controlled by SSCP® v1 & v2 secure communication protocols
-
Light Indicator2 RGB LEDs - 360 colors
-
Tamper DetectionAccelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
-
Inputs/OutputsSolid State Relay | Output Voltage: 60V - Output Current: 0.2A - Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
-
ConfigurationsConfiguration by RFID card, software, or controlled by external command (0V) depending on the interface
-
Operating Voltage7 - 28 VDC
-
Operating Temperature-30°C / +60°Cn-22°F / +140°F
-
RobustnessIK08 Certified
-
MountingWall-mounted
-
CertificationsCE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
-
Current Draw290 mA/12 VDC max
-
ResistanceIP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 5 - 90%
-
Dimensions & Weight156 x 80 x 36 mm / 6.3 x 3.15 x 1.02 in (general tolerance following ISO NFT 58-000 standard)
-
Range0 - 3 cm / 0 - 1.2 in with a QR Code 0 - 6 cm / 0 - 2.4 in with a MIFARE® DESFire® EV3 card
-
Housing Materials & ColorABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
-
Connections10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal
-
RS485
-
Secure Private ID and/or CSN serial numberARC-R33-BQ/PH5-7AB/y
-
Secure Private ID and/or CSN serial number + Secure communicationARC-S33-BQ/PH5-7AB/y
-
Secure Private ID and/or CSN serial number compatible with EasySecure interfaceARC-R33-BQ/PH5-7AA/y
-
Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interfaceARC-S33-BQ/PH5-7AA/y
-
-
Secure Private ID and/or CSN serial numberARC-R31-BQ/PH5-xx/y
-
Secure Private ID and/or CSN serial number + Secure communicationARC-S31-BQ/PH5-xx/y
-
SSCP® v1 protocolARC-W33-BQ/PH5-7AA/y
-
SSCP® v2 protocolARC-W33-BQ/PH5-7AD/y
-
SSCP® v1 protocolARC-W32-BQ/PH5-5AA/y
-
Secure Private ID and/or CSN serial numberARC-W33-BQ/PH5-7OS/y
-
Secure Private ID and/or CSN serial numberARC-R32-BQ/PH5-5AB/y
