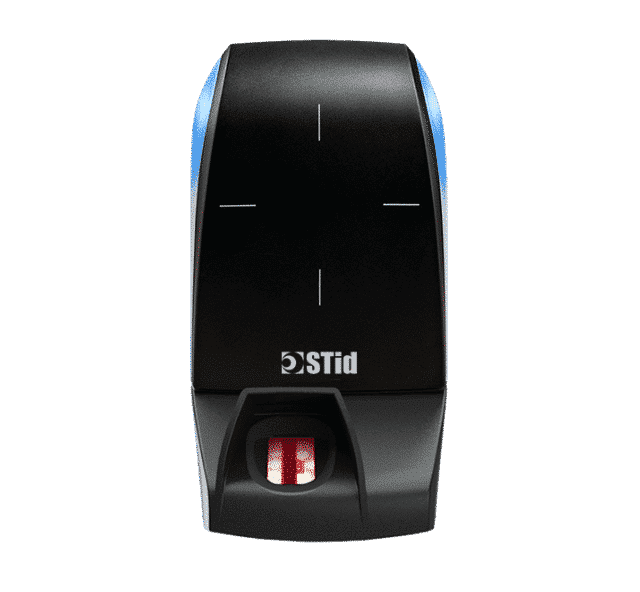

Architect® Biometrics
The Architect® biometric reader combines the latest RFID MIFARE® DESFire® EV3 technologies with digital fingerprint recognition to ensure a strong authentication of the user and enhance the security of your access control system.
Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.
Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys.
Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.
Advanced Anti-Spoof Functions
The biometric reader is designed to resist fraud and spoof attempts:
• False finger detection: the reader detects a wide range of counterfeit fingerprints made of latex, Kapton, transparent film, rubber, graphite, etc.
• Detection of live fingers.
• Duress finger: the admin can assign a
finger number dedicated to authentication when the user is threatened.
Strong Two-Factor Authentication
The reader combines the reading of a secure MIFARE® DESFire® EV3 credential with the fingerprint identification to enhance the security levels.
Fingerprints are converted into a template, meaning no image is ever saved. Templates stored on the card or server are then also encrypted and signed to guarantee the confidentiality, the origin and the integrity of the data.
-
custom
Black
White
Test lighting effect opting for a color
Test your own brand adding your logo
Monochrome or Quadri ?
-
protocols
Wiegand
SSCP®
OSDP™
-
technologies
Apple Wallet™
13.56 MHz MIFARE® DESFire® EV3
-
Frequency13.56 MHz
-
StandardISO14443 types A & B, ISO18092
-
13.56 MHz CredentialsMIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3
-
Virtual Credential CompatibilitySTid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes
-
KeypadReader_KeypadUndefined
-
Reader_AntennaReader_Antenna_Standard
-
Wiegand InterfaceWiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
-
Clock & DataClock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
-
RS232RS232 output
-
RS485RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
-
SSCP ProtocolRS485 and RS232 outputs - Controlled by SSCP® v1 & v2 secure communication protocols
-
Light Indicator2 RGB LEDs - 360 colors
-
Tamper DetectionAccelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
-
Inputs/OutputsSolid State Relay | Output Voltage: 60V - Output Current: 0.2A - Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
-
ConfigurationsConfiguration by RFID card, software, or controlled by external command (0V) depending on the interface
-
Operating Voltage7 - 28 VDC
-
Operating Temperature-10°C / +50°Cn14°F / +122°F
-
MountingWall-mounted
-
CertificationsCE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
-
ResistanceIP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
-
Current Draw280 mA/12 VDC max
-
Connections10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal
-
Dimensions & Weight149 x 80 x 71 mm / 5.63 x 3.15 x 2.80 in (general tolerance following ISO NFT 58-000 standard)
-
Housing Materials & ColorABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
-
Range0 - 8 cm / 0 - 3.1 in with a MIFARE® DESFire® EV3 card
-
TTL (Wiegand / Clock&Data)
-
Secure Private IDARC-R31-D/PH5-xx/y
-
Secure Private ID + Secure communicationARC-S31-D/PH5-xx/y
-
-
SSCP® v1 protocolARC-W33-D/PH5-7AA/y
-
SSCP® v2 protocolARC-W33-D/PH5-7AD/y
-
SSCP® v1 protocolARC-W32-D/PH5-5AA/y
-
Secure Private ID and/or CSN serial numberARC-R33-D/PH5-7AB/y
-
Secure Private ID and/or CSN serial number + Secure communicationARC-S33-D/PH5-7AB/y
-
Secure Private ID and/or CSN serial number compatible with EasySecure interfaceARC-R33-D/PH5-7AA/y
-
Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interfaceARC-S33-D/PH5-7AA/y
-
Secure Private IDARC-R32-D/PH5-5AB/y
-
Secure Private IDARC-W33-D/PH5-7OS/y
