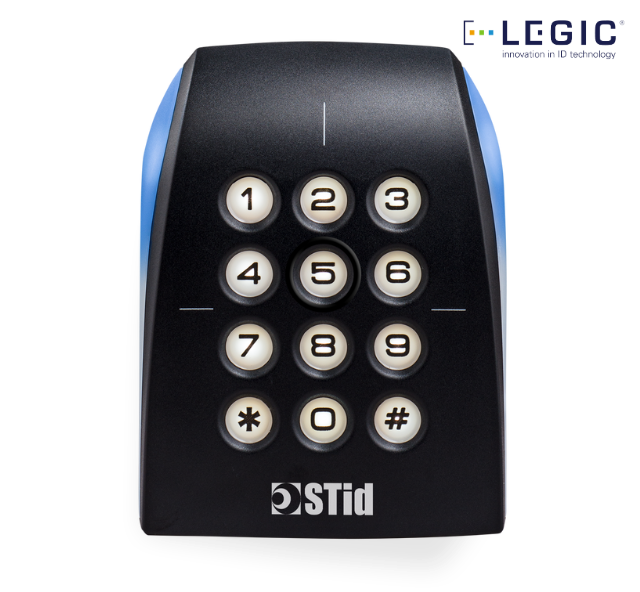

Architect® LEGIC® Keypad
The Architect® reader combines RFID LEGIC® Advant & Prime technologies with a capacitive vandal-proof keypad, allowing multi-factor identification of users.
N/A
Two-Factor Authentication
The reader combines the reading of a credential with the input of a personal keypad code to improve the security levels.
Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.
Welcome to High Security
The Architect® reader uses the latest LEGIC® Advant contactless chip technologies with new data security mechanisms.
All public encryption algorithms can be used (AES, RSA, SHA, etc.), which are recommended by official data security agencies.
-
custom
Black
White
Test lighting effect opting for a color
Test your own brand adding your logo
Monochrome or Quadri ?
-
protocols
Wiegand
SSCP®
-
technologies
13.56 MHz LEGIC®
-
Frequency13.56 MHz
-
StandardISO14443 type A, ISO15693, LEGIC® RF
-
13.56 MHz CredentialsLEGIC® Advant & Prime | CSN of the chips: MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass®, iCLASS™, ICODE SLI, Inside chips
-
KeypadReader_KeypadKeyTouchCardThenKey
-
Reader_AntennaReader_Antenna_Keypad
-
Wiegand InterfaceWiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom
-
Clock & DataClock&Data 32 bits, 40 bits or custom
-
RS232RS232 output
-
RS485RS485 output
-
Light Indicator2 RGB LEDs - 360 colors
-
Tamper DetectionAccelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
-
Inputs/OutputsSolid State Relay | Output Voltage: 60V - Output Current: 0.2A - Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
-
ConfigurationsConfiguration by software, or controlled by external command (0V) depending on the interface
-
Operating Voltage7 - 28 VDC
-
Operating Temperature-20°C / +70°Cn-4°F / +158°F
-
RobustnessIK08 Certified
-
MountingWall-mounted
-
CertificationsCE (Europe), RoHS
-
Dimensions & Weight107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)
-
Range0 - 6 cm / 0 - 2.4 in with a LEGIC® Advant card
-
Connections10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal
-
ResistanceIP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
-
Current Draw160 mA/12 VDC max
-
Housing Materials & ColorABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
-
TTL (Wiegand / Clock&Data)
-
Secure Private ID and/or CSN serial numberARC-R31-M/LE2-xx/y
-
-
Secure Private ID and/or CSN serial numberARC-R32-M/LE2-5AB/y
-
Secure Private ID and/or CSN serial numberARC-R33-M/LE2-7AB/y
-
SSCP® v1 protocolARC-W33-M/LE2-7AA/y
-
SSCP® v1 protocolARC-W32-M/LE2-5AA/y
