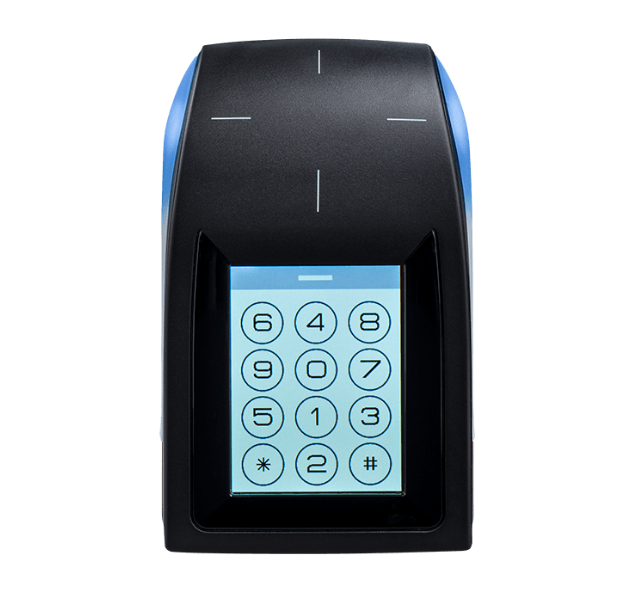

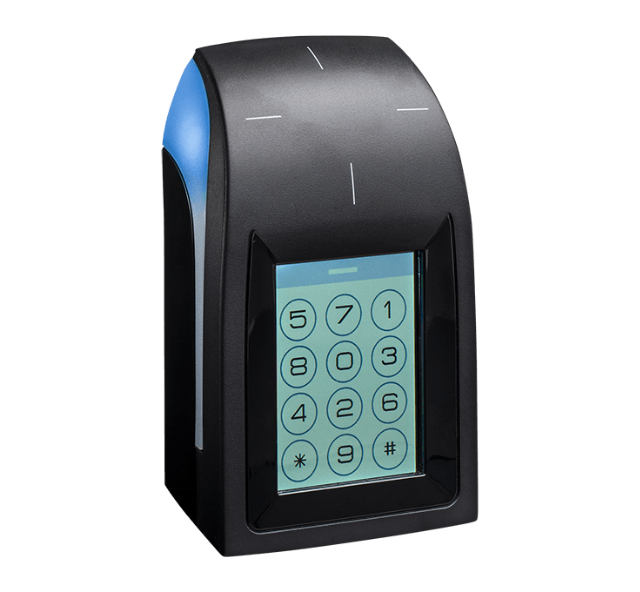

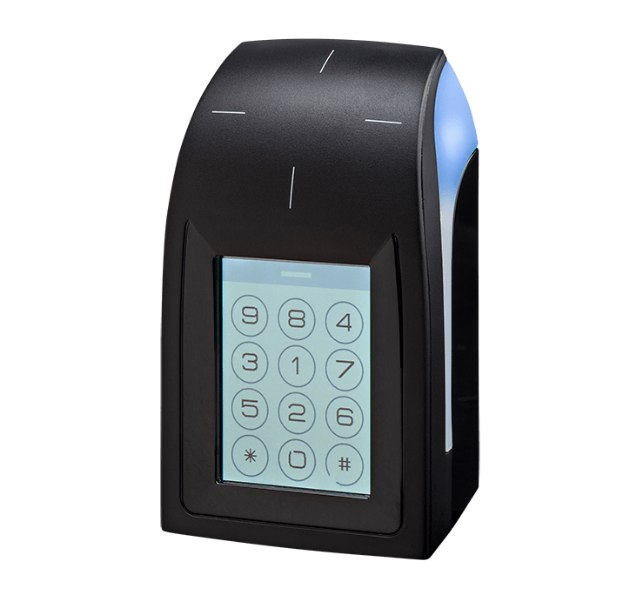

Architect® Touchscreen
Compatible with all access control systems, the Architect® reader combines RFID and NFC technologies with a color touchscreen allowing the display of a keyboard and/or information.
Highly Versatile
The reader supports 13.56 MHz DESFire® EV3, Near Field Communication (NFC) capability and features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.
Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.
An Intuitive Display Experience
Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.
Remote Management of Smart Functions
The touchscreen has the power to customize 100% of the buttons using the SSCP® protocol or display function keys via the OSDP™ protocol. This allows you to effortlessly arm/disarm alarms, manage time and attendance, and much more.
-
custom
Black
White
Test lighting effect opting for a color
-
protocols
Wiegand
SSCP®
OSDP™
-
technologies
Apple Wallet™
13.56 MHz MIFARE® DESFire® EV3
-
Frequency13.56 MHz
-
StandardISO14443 types A & B, ISO18092
-
13.56 MHz CredentialsMIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
-
Virtual Credential CompatibilitySTid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes
-
KeypadReader_KeypadKeyTouchCardAndKey
-
TouchscreenColor Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8’’ - 240 x 320 pixels | Features - Display of texts, images, and on-screen keypad | OSDP™: 4 customizable function buttons with text | SSCP®: customizable screen
-
Reader_AntennaReader_Antenna_Touchscreen
-
Wiegand InterfaceWiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
-
Clock & DataClock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
-
RS232RS232 output
-
RS485RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
-
SSCP ProtocolRS485 and RS232 outputs - Controlled by SSCP® v1 & v2 secure communication protocols
-
Light Indicator2 RGB LEDs - 360 colors
-
Tamper DetectionAccelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
-
Inputs/OutputsSolid State Relay | Output Voltage: 60V - Output Current: 0.2A - Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
-
ConfigurationsConfiguration by RFID card, software, or controlled by external command (0V) depending on the interface
-
Operating Voltage7 - 28 VDC
-
Operating Temperature-20°C / +70°Cn-4°F / +158°F
-
MountingWall-mounted
-
CertificationsCE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
-
Dimensions & Weight128 x 80 x 30 mm / 5.04 x 3.15 x 1.2 in (general tolerance following ISO NFT 58-000 standard)
-
Range0 - 4 cm / 0 - 1.6 in with a MIFARE® DESFire® EV3 card
-
Current Draw200 mA/12 VDC max
-
ResistanceIP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
-
Connections10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal
-
Housing Materials & ColorABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
-
RS485
-
Secure Private ID and/or CSN serial numberARC-R33-C/PH5-7AB/y
-
Secure Private ID and/or CSN serial number + Secure communicationARC-S33-C/PH5-7AB/y
-
Secure Private ID and/or CSN serial number compatible with EasySecure interfaceARC-R33-C/PH5-7AA/y
-
Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interfaceARC-S33-C/PH5-7AA/y
-
-
Secure Private ID and/or CSN serial numberARC-R32-C/PH5-5AB/y
-
CSN serial numberARC-R31-C/103-xx/y
-
Secure Private ID and/or CSN serial numberARC-R31-C/PH5-xx/y
-
Secure Private ID and/or CSN serial number + Secure communicationARC-S31-C/PH5-xx/y
-
SSCP® v1 protocolARC-W33-C/PH5-7AA/y
-
SSCP® v2 protocolARC-W33-C/PH5-7AD/y
-
SSCP® v1 protocolARC-W32-C/PH5-5AA/y
-
CSN serial numberARC-W33-C/103-7OS/y
-
Secure Private ID and/or CSN serial numberARC-W33-C/PH5-7OS/y
