Pack Spectre Nano Standalone

Pack Spectre Nano Standalone

Plug & Play solution for vehicle access control

The Standalone Pack is an all-in-one, secure, and easy-to-deploy solution designed for
environments where installing a full access control system would be too complex or expensive.
• No controller, no access control system – Direct connection to the barrier
• AES encryption and EAL5+ certified crypto-processor for anti-cloning protection
• Virtual credentials instantly distributed via QR code
• No subscription, scalable without reader replacement

Fully Plug-and-Play Pack

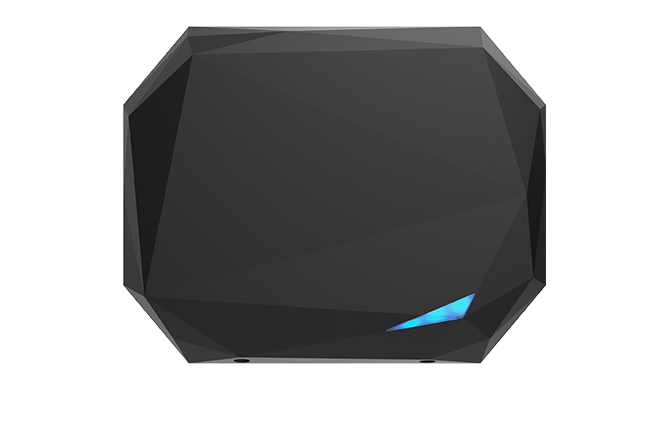

The pack comes with the SPECTRE nano reader and all credentials already preconfigured – UHF tags and/or Bluetooth® virtual credentials – plus a configuration card. Thanks to the whitelist stored directly in the reader, access management is handled locally, with no dependence on a central system.

Simplified Installation
The reader connects directly to the gate or barrier, with no controller, no software, and no central system. No network configuration is required, ensuring fast deployment and no technical constraints.

Enhanced Security
Credentials are encrypted and signed, ensuring strong protection against cloning. The reader includes an EAL5+ certified crypto-processor, protecting sensitive
data stored inside the reader – such as cryptographic keys.

Mobile Ready by Design
Compatible with STid Mobile ID®, the pack allows instant distribution of virtual credentials via secure QR codes, with no account creation or email required.
Virtual credentials are aslo fully compatible with Architect® CORE Start® readers.

Optimized R.O.I.
Reduce your costs from day one! With no license fees or recurring costs, the solution significantly reduces installation and maintenance expenses. It can evolve into a connected version without replacing the reader, ensuring a sustainable and future-proof investment.

  • Operating frequencies / Standards
    UHF - 2 versions: • 865 - 868 MHz: 866 MHz ETSI (Europe), Morocco (reg. n°ANRT/DG/n°7-10), India, etc. • 902 - 928 MHz: 915 MHz FCC Part 15 (USA), Australia, New Zealand, Peru, Philippines, etc. Bluetooth® - 2.4 GHz
  • Modes
    Standalone mode with local whitelist management (in the reader)
  • Read ranges
    Up to 6 m (20 ft) with an ETA windshield tag Up to 20 m (66 ft) with a Bluetooth® (2 modes: Remote & Card) Read range may vary depending on vehicle type, installation conditions, Bluetooth® mode and local regulations.
  • Data protection
    EAL5+ certified crypto-processor for secure key storage
  • LED indicator
    1 LED (default: blue – ID read: green)
  • Power supply / Consumption
    9 – 36 VDC (typ. 12 VDC) – 900 mA typ. / 1.5 A max at 12 VDC
  • Connector
    8-pin removable terminal block (5 mm / 0.2 in) with cable gland
  • Relay output
    24 VDC 2A power relay to control barrier motor – default state: open
  • Materials
    Black ABS-PC and polycarbonate / Aluminum
  • Dimensions (H × W × D) / Weight
    185 × 230 × 35 mm (7.2 x 9 x 1.4 in) (general tolerance following ISO NFT 58-000 standard) / 1.25 kg (35.3 oz)
  • Temperatures
    Operating: -30°C to +60°C (-22°F to +140°F) / Storage: -40°C to +65°C (-40°F to +149°F)
  • Protection / Resistance
    IP65 certified / Humidity: 5 - 95% / IK10-certified vandal-proof front panel structure
  • Mounting
    Supplied with wall-mount bracket. Compatible with VESA 75 × 75 universal mounting kits (optional): • Wall mount with swivel bracket for angled installation • Pole mount
  • Certifications
    CE (Europe), FCC (USA), IC (Canada), UKCA (UK), BIS & WPC/ETA (India), ANRT (Morocco), RCM (Australia & New Zealand), UL, RoHS

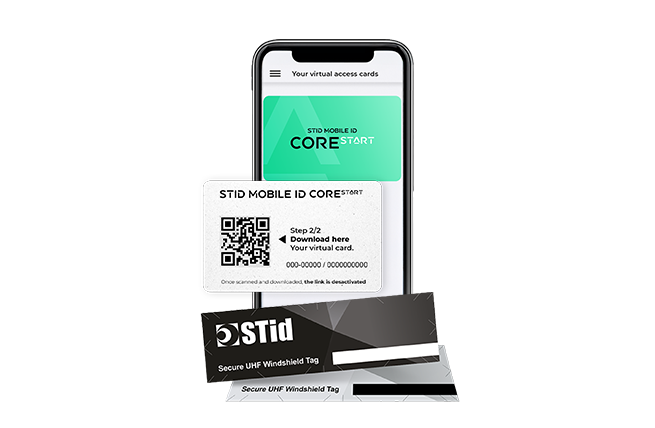

  • Credentials Specifications
    ETA Windshield Tags • Passive UHF • Pre-encoded & numbered • Encrypted & signed identifier (EPC) • Tamper-proof – self-destructs when removed
  • Virtual Credentials
    STid Mobile ID® CORE Start® Virtual Credentials • Bluetooth® with STid Mobile ID® App (Android/iOS) • Download via QR code • Pre-encoded & numbered • Encrypted & signed identifiers and communications
  • Packages & Part Numbers - PACK 1
    • Number of Reader
      1
    • ETA UHF Tags
      50
    • Virtual Credentials
      None
    • Part Numbers
      PACK1-SA1-SNA-XX
  • Packages & Part Numbers - PACK 2
    • Number of Reader
      1
    • ETA UHF Tags
      None
    • Virtual Credentials
      50
    • Part Numbers
      PACK2-SA1-SNA-XX
  • Packages & Part Numbers - PACK 3
    • Number of Reader
      1
    • ETA UHF Tags
      50
    • Virtual Credentials
      50
    • Part Numbers
      PACK3-SA1-SNA-XX
