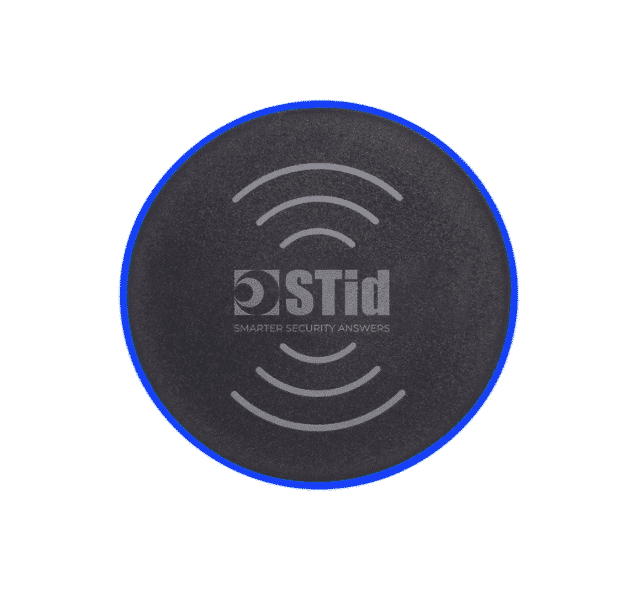

PUCK Desktop

NFC pass and 13.56 MHz DESFire® EV3 Desktop Reader with PC/SC or Keyboard Emulation

The PUCK desktop reader combines versatility, security, and sustainability in a compact, user-friendly design. Tailored to meet diverse business and operational needs, it supports both PC/SC and Keyboard Emulation operating modes. Whether you require direct access to credential functions via the native CCID driver or a WEDGE mode that transmits data as keyboard input, the PUCK ensures effortless integration into logical access systems. Supporting a wide range of RFID and NFC credentials and compatible with Windows, Linux, and macOS, it is an ideal solution for secure authentication, loyalty programs, transportation, and more.

Eco-Friendly and Durable Design
Crafted with sustainability in mind, the PUCK reader is made from 100% recycled and recyclable PVC, marked with vegetable ink, and packaged in FSC-certified materials. Its robust and lightweight design ensures long-lasting durability for everyday use.

Advanced Multi-Technology Support
The PUCK reader supports an extensive range of RFID/NFC credentials, including:
• NFC passes in Apple Wallet (VAS, ECP 2.0 Access) and Google Pay (Smart Tap).
• MIFARE® & DESFire® EV2/EV3, ISO15693, and Calypso…
This broad compatibility ensures seamless integration into various applications, from secure printing to transportation.

Enhanced Security and Performance
Built for high-security environments, the PUCK reader features public cryptographic algorithms and a Secure Element to safeguard sensitive data. It delivers exceptional performance, ensuring reliable and efficient operations for even the most demanding applications.

Seamless Integration with Flexible Operating Modes
The PUCK reader adapts to your operational needs with two intuitive operating modes, eliminating the hassle of driver installation:
• PC/SC Mode: use the native CCID driver to ensure secure, transparent operation and direct access to credential functions.
• Keyboard Emulation (Wedge) Mode: functions as a standalone device, transmitting data directly to the host device as keyboard input, requiring no additional software or development.

  • protocols

    PC/SC

  • technologies

    Apple Wallet™

    13.56 MHz MIFARE® DESFire® EV3

  • Frequency
    13.56 MHz
  • Standard
    ISO14443 types A & B, ISO15693, ISO18092
  • 13.56 MHz Credentials
    MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, DESFire® EV1, EV2 & EV3, SMART MX & NTAG, Infineon (my-d Proximity, my-d Move, SLE & SLS), ST MicroElectronics (ST25TA, ST25TB, CD21, M24SR), Atmel/ Microchip (AT88SC), ICODE SLI & SLI2, Infineon (gamme my-d Vicinity), ST MicroElectronics (ST25TV & M24LR), Texas Instrument (TagIT HF), ICODE-EPC, JIS : X6319-4 (NFC-F) : Sony FeliCa Lite & Lite-S, Calypso, Innovatron (CD97 & GTML), Innovision/Broadcom (Topaz & Jewel), ST MicroElectronics (SR176 & SRI512), ASK/Paragon ID (CTS256 & CTS512), Inside Contactless, PicoPass (CSN), HID iClass* (CSN), Silicon Craft (SI43NT EM Marin)
  • Virtual Credential Compatibility
    NFC Apple VAS (Wallet), ECP 2.0 Access & Google Smart Tap (Google Pay) passes
  • Keypad
    Reader_KeypadUndefined
  • Reader_Antenna
    Reader_Antenna_0
  • Light Indicator
    1 RGB LED - Adjustable brightness and color
  • Operating Temperature
    -20°C / +70°Cn-4°F / +158°F
  • Certifications
    CE (Europe), FCC (USA), IC (Canada)
  • Range
    0 - 10 cm / 0 - 3.9 in depending on the tag
  • Connections
    1.8 m / 6 ft USB-A / USB-C cable
  • Dimensions & Weight
    Diameter: 7.8 cm (3.07 in) / Height: 2.8 cm (1.10 in) / Weight: 140 g (4,94 oz) / 75 g (2.64 oz) without cable
  • Housing Materials & Color
    Recycled / recyclable PVC case - Marked with vegetable-based inks - 100% recycled / recyclable FSC-certified cardboard packaging - Made in France
  • Resistance
    Humidity: 0 -90% non-condensing - MTBF: 500,000 hours
  • PC/SC
    • PUCK Base
      SC19210
    • PUCK One
      SC18179
    • PUCK Blue
      SC19212
  • Keyboard Emulation
    • PUCK Base AZERTY
      SC20173
    • PUCK Base QWERTY
      SC21030
    • PUCK Blue
      SC20123
