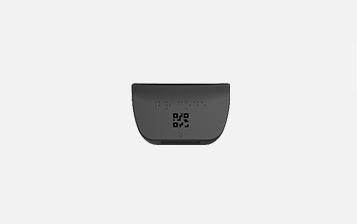

QR Code Module Architect®

QR Code Module Architect®

QR Code Module Architect®

Simplify temporary and visitor access management with the Code 1 & 2D / QR Code reader module. Designed to adapt to all types of infrastructure, this module supports a variety of formats and guarantees fast, reliable reading of both printed and smartphone codes.

Adaptable and Flexible
Easily identify users with different profiles (visitors, employees, tenants…) thanks to support for 1D and 2D formats such as QR Code, Aztec, and Data Matrix.
Flexible and Simple
This Plug & Play module connects quickly to standard readers, keypads, and touchscreens within the Architect® range, ensuring a seamless and efficient setup for various applications.
Eco-Design and Cost-Effective
The modular concept helps reduce acquisition costs while simplifying maintenance and the evolution of your infrastructure. This approach ensures long-term efficiency, making it easier to adapt your system to future needs without the need for costly replacements.
  • Dimensions & Weight
    62 x 80 x 36 mm / 2.4 x 3.1 x 1.4 in (general tolerance following ISO NFT 58-000 standard)
  • Housing Materials & Color
    ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Operating Temperature
    -30°C / +60°C
  • Robustness
    IK08 certified and reinforced vandal-proof structure
  • Resistance
    IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
  • Certifications
    CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), UL, RoHS
  • 1D/2D Code Compatibility
    QR Code (versions 1, 2, and 3), Micro QR Code, Code 128, Aztec, Data Matrix
  • QR Code Module Architect®
    • Part Number Black:
      SE910
    • Part Number White:
      SE920
