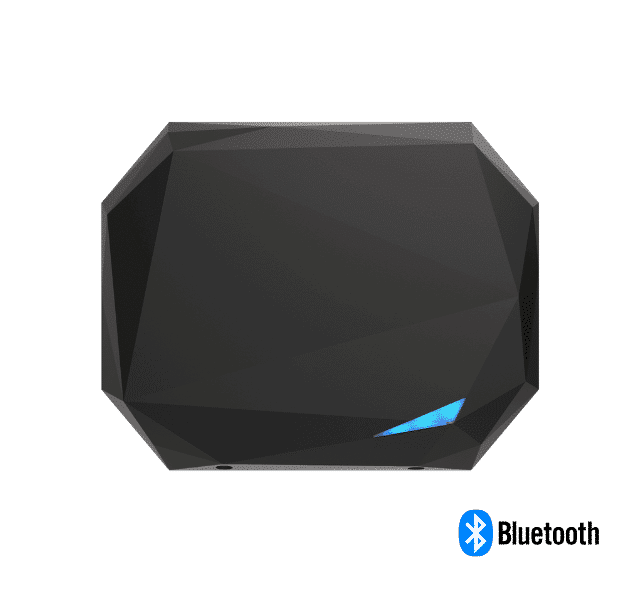

SPECTRE nano

UHF & Bluetooth® Multi-Technology Reader

SPECTRE nano, the most compact UHF and Bluetooth® reader on the market, enhances the user experience by streamlining secure vehicle access and eliminating traffic bottlenecks. Its cutting-edge technology supports long-range identification and mobile credentials, ensuring seamless entry for vehicles and drivers. Designed for robust performance in demanding environments, SPECTRE nano delivers unmatched versatility, security, and efficiency for modern access control solutions.

End-to-End Controlled Security
SPECTRE nano ensures optimal security, guaranteeing data authenticity and confidentiality through encryption methods recognized by organizations such as ANSSI and FIPS.
• Encrypted and signed credentials to prevent cloning and replay attacks.
• Certified storage: keys protected within an EAL5+ module.
• Intelligent self-protection: automatic key deletion in case of tampering.
• End-to-end secure communication with SSCP® and OSDP™ protocols.

Standing the Test of Time
SPECTRE nano features an IK10-certified vandal-resistant structure, providing optimal protection against impacts and malicious acts. With its IP65 certification, it is perfectly suited for outdoor installation, even in challenging environments such as those with vibrations, dust, harsh weather, or saline conditions.

Simplified Integration
The reader provides maximum flexibility, operating in standalone mode (whitelist stored in the reader) or connected to an access control system via the leading communication protocols on the market (Wiegand, OSDP™, SSCP®…). Interoperable and globally compliant, it adheres to local regulations (ETSI, FCC, Morocco, Peru, Australia, India…), ensuring worldwide compatibility.

Seamless and Intuitive Multi-Technology Identification
SPECTRE nano revolutionizes access control by combining multiple technologies to easily identify vehicles and drivers, whether they are visitors, employees, tenants, or VIPs.

Passive UHF Technology
Identify vehicles and drivers over long distances (up to 6 m / 20 ft) using battery-free, durable, and maintenance-free tags.

STid Mobile ID® – Bluetooth® Smartphones
Enjoy secure and intuitive identification with your smartphone. Effortlessly access parking facilities with modes tailored to each use case (long-range, hands-free, or proximity).

Hybrid and Flexible Identification
The reader enables the use of virtual cards for simplified visitor management, UHF windshield tags for fleet tracking, or a combination of these technologies to simultaneously identify both the vehicle and its driver.

  • protocols

    Wiegand

    SSCP®

    OSDP™

  • technologies

    Bluetooth®

    UHF

  • Frequency
    UHF + 2.4 GHz Bluetooth®
  • Standard
    ISO18000-63 | 865 - 868 MHz: 866 MHz ETSI - Europe / Middle-East, Morocco (regulation n°ANRT/DG/n°7-10) | 902 - 928 MHz: 915 MHz FCC Part 15 - USA / North America , Australia, New Zealand, Philippines, PerurnBluetooth®
  • Virtual Credential Compatibility
    STid Mobile ID® Bluetooth® cards
  • UHF Credentials
    EPC1 GEN2 tags & credentials
  • Keypad
    Reader_KeypadUndefined
  • Reader_Antenna
    Reader_Antenna_0
  • Wiegand Interface
    Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom
  • Clock & Data
    Clock&Data 32 bits, 40 bits or custom
  • RS232
    RS232 output
  • RS485
    RS485 output in read-only mode
  • SSCP Protocol
    RS485 and RS232 outputs - Controlled by SSCP® v1 & v2 secure communication protocols
  • Light Indicator
    1 LED with 7 colors (green, red, blue, yellow, purple, turquoise, white)
  • Data Protection
    EAL 5+ Certified Secure Element Hardware for secure key storage.
  • Tamper Detection
    Detection of cover opening through an infrared sensor and mechanical switch, with the option to erase keys and/or send a message to the controller
  • Inputs/Outputs
    1 input for external device control
  • Configurations
    Configuration by UHF card, software, or controlled by external command (0V) depending on the interfacenBuzzer activable/deactivable via jumper
  • Operating Voltage
    7 - 28 VDC
  • Operating Temperature
    -30°C / +60°Cn-22°F / +140°F
  • Robustness
    IK10 Certified
  • Mounting
    Mounting bracket included for surface wall installation
  • Certifications
    CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
  • Connections
    8-pin (5 mm / 0.2 in) plug-in screw terminal block and cable gland
  • Range
    0 - 6 m / 0 - 20 ft with an ETA passive label and a TeleTag® 0 - 20 m / 0 - 66 ft with a Bluetooth® virtual card
  • Resistance
    IP65-Certified - Resistant to weather, water, and dust - Humidity: 5 - 95%
  • Housing Materials & Color
    ABS and black polycarbonate (ABS-PC) / Aluminium White version available as option
  • Current Draw
    900 mA/12 VDC typical / 1.5 A/12 VDC max
  • Dimensions & Weight
    185 x 230 x 35 mm / 7.28 x 9.06 x 1.38 in (general tolerance following ISO NFT 58-000 standard) 1.25 kg / 44.1 oz
  • TTL (Wiegand / Clock&Data)
    • Low Band 865-868 MHz
      SNA-R41-A/BT4-xx/y
    • Upper Band 902-928 Hz
      SNA-R51-A/BT4-xx/y
    • Morocco (regulation n°ANRT/DG/n°7-10)
      SNA-R41-A/BT4-xx/yM
    • Australia
      SNA-R51-A/BT4-xx/yAU
    • New Zealand
      SNA-R51-A/BT4-xx/yNZ
    • Peru
      SNA-R51-A/BT4-xx/yPE
    • Philippines
      SNA-R51-A/BT4-xx/yPH
  • SSCP Protocols
    • Low Band 865-868 MHz
      SNA-W43-A/BT4-7AX/y
    • Upper Band 902-928 MHz
      SNA-W53-A/BT4-7AX/y
    • Morocco (regulation n°ANRT/DG/n°7-10)
      SNA-W43-A/BT4-7AX/yM
    • Australia
      SNA-W53-A/BT4-7AX/yAU
    • New Zealand
      SNA-W53-A/BT4-7AX/yNZ
    • Peru
      SNA-W53-A/BT4-7AX/yPE
    • Philippines
      SNA-W53-A/BT4-7AX/yPH
    • Low Band 865-868 MHz
      SNA-W42-A/BT4-5AX/y
    • Upper Band 902-928 MHz
      SNA-W52-A/BT4-5AX/y
    • Morocco (regulation n°ANRT/DG/n°7-10)
      SNA-W42-A/BT4-5AX/yM
    • Australia
      SNA-W52-A/BT4-5AX/yAU
    • New Zealand
      SNA-W52-A/BT4-5AX/yNZ
    • Peru
      SNA-W52-A/BT4-5AX/yPE
    • Philippines
      SNA-W52-A/BT4-5AX/yPH
  • OSDP Protocols
    • Low Band 865-868 MHz
      SNA-W43-A/BT4-7OS/y
    • Upper Band 902-928 MHz
      SNA-W53-A/BT4-7OS/y
    • Morocco (regulation n°ANRT/DG/n°7-10)
      SNA-W43-A/BT4-7OS/yM
    • Australia
      SNA-W53-A/BT4-7OS/yAU
    • New Zealand
      SNA-W53-A/BT4-7OS/yNZ
    • Peru
      SNA-W53-A/BT4-7OS/yPE
    • Philippines
      SNA-W53-A/BT4-7OS/yPH
  • RS485
    • Low Band 865-868 MHz
      SNA-R43-A/BT4-7AB/y
    • Upper Band 902-928 MHz
      SNA-R53-A/BT4-7AB/y
    • Morocco (regulation n°ANRT/DG/n°7-10)
      SNA-R43-A/BT4-7AB/yM
    • Australia
      SNA-R53-A/BT4-7AB/yAU
    • New Zealand
      SNA-R53-A/BT4-7AB/yNZ
    • Peru
      SNA-R53-A/BT4-7AB/yPE
    • Philippines
      SNA-R53-A/BT4-7AB/yPH
  • RS232
    • Low Band 865-868 MHz
      SNA-R42-A/BT4-5AB/y
    • Upper Band 902-928 MHz
      SNA-R52-A/BT4-5AB/y
    • Morocco (regulation n°ANRT/DG/n°7-10)
      SNA-R42-A/BT4-5AB/yM
    • Australia
      SNA-R52-A/BT4-5AB/yAU
    • New Zealand
      SNA-R52-A/BT4-5AB/yNZ
    • Peru
      SNA-R52-A/BT4-5AB/yPE
    • Philippines
      SNA-R52-A/BT4-5AB/yPH
