ARCS-BQ/BT - 13.56 MHz + Bluetooth® + QR Code multi-technology keypad reader

ARCS-BQ/BT - 13.56 MHz + Bluetooth® + QR Code multi-technology keypad reader

The Architect® Blue multi-technology RFID, NFC, and Bluetooth® keypad reader is equipped with a QR code / barcode module to enable the identification of employees and visitors.

Identification by QR code simplifies the management of temporary access in offices, parking lots or any other infrastructure.

The most awarded access control reader around the world bandeau logo Trophees STid 2017 V2

Logo of Architect blue for the ARCS-B/BT by STid Industry

The perfect blend of high security and scalability

  • SliderBQ
  • SliderBQ face
  • SliderBQ 2
  • SliderBQ droite
  • SliderBQ gauche blc
  • SliderBQ blc
  • SliderBQ face blc
  • SliderBQ 2 blc
  • SliderBQ droite blc
  • SliderBQ gauche

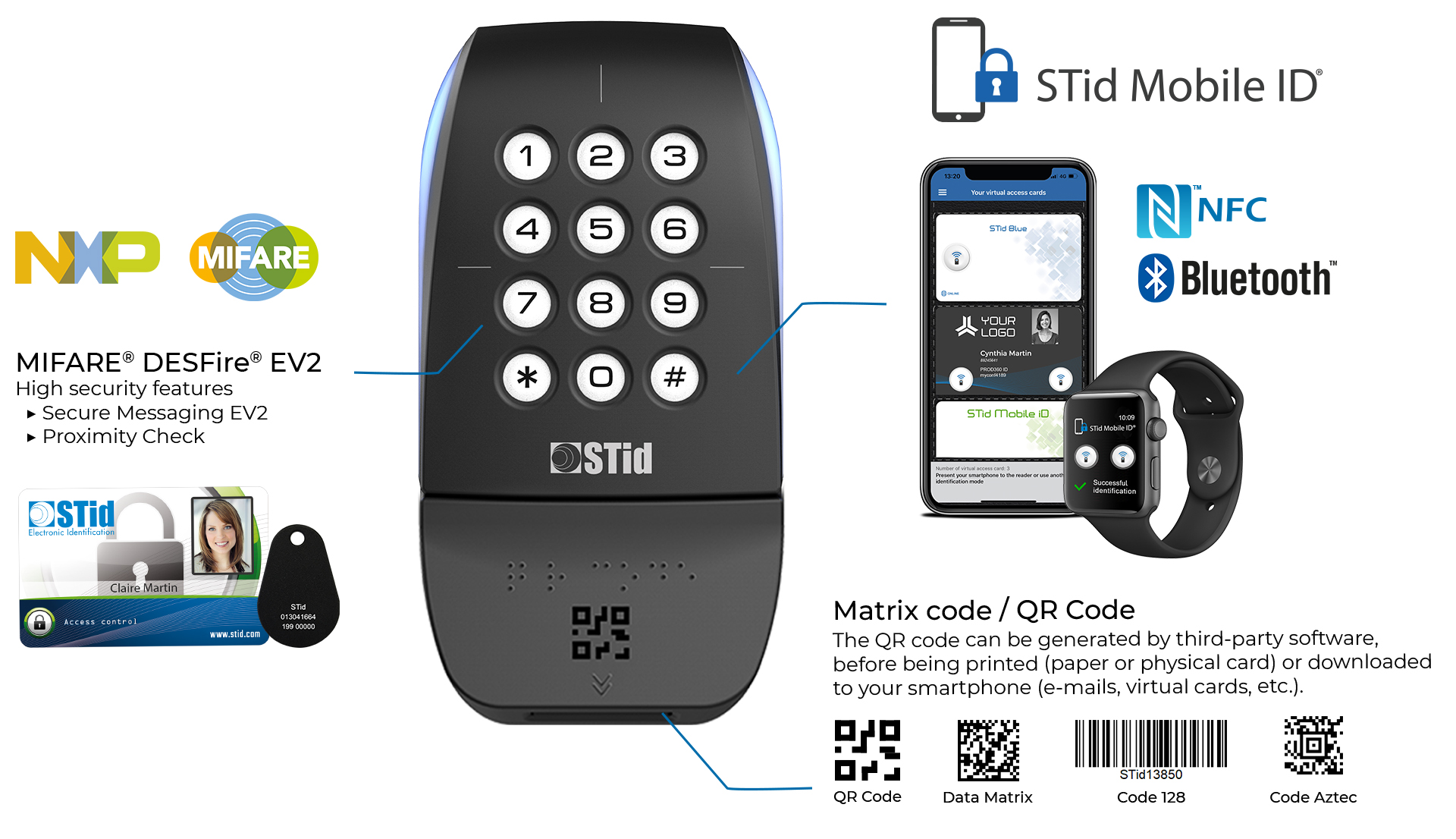

A multi-technology reader to meet all security requirements

The reader facilitates the identification of users with different profiles (visitors, employees, tenants, drivers...)
by its compatibility with multiple identification technologies.

BQ multi techno v3 US



VANDAL-PROOF CAPACITIVE KEYPAD

Equipped with a backlit keypad, the reader allows multi-factor identification of users by combining the reading of an RFID or virtual card with the input of a personal keypad code.

Différents modes de fonctionnement sont disponibles : le clavier peut être utilisé pour s’identifier ou pour activer des fonctions annexes (mise en service d’alarme…).

Un même lecteur peut également fonctionner en mode multiple. Il autorise, par exemple, la lecture de badges pour le personnel ou la saisie de codes pour les visiteurs ou intervenants temporaires.



visuels porte bq smartphone

Simple and easy to use

The access control reader by QR Code Architect® Blue streamlines visitor access with ease and ultimate dual speed reading.

It guarantees QR Code-reading day and night and in all weather conditions: very bright environments, reflections, indoor or outdoor...

The ergonomic design of the reader enables feedback to the user: double visual led indicator, audible indicator, etc.

Applications

  • Visitor Management
  • Access control for temporary staff
  • Parking access control
  • Mobility
  • Space sharing and reservation of meeting rooms
  • Logistics - shipping & receiving...

6 identification modes for a unique experience

Virtual cards promote acceptance of and compliance with the Security Policy of businesses, industries and governments.
STid Mobile ID® is so user-friendly that it makes identification instinctive.

Choose your favorite identification mode and make your access options both secure and much more intuitive!

mode vocal

Card mode

by placing your smartphone in front of the reader.

Icon for the slide identification mode of the ARCS-A/BT by STid Industry

Slide mode

by placing your hand close to the reader without taking out your phone.

  Icon for the tap tap identification mode of the ARCS-A/BT by STid Industry

Tap Tap mode

by tapping your smartphone twice in your pocket for near or remote opening.



Icon for the remote identification mode of the ARCS-A/BT by STid Industry

Remote mode

by using your smartphone as a remote control.



Icon for the hands-free identification mode of the ARCS-A/BT by STid Industry

Hands-free mode

by simply passing in front of the reader.



mode badge

Voice Control mode

using the SIRI voice command on your iPhone (iOS) or Apple Watch.

See identification modes  Play

Logo of SECARD for the ARCS-A/BT by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARCS-A/BT by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sscp US

Readers are compatible with the latest generation of open protocol SSCP® (Secure & Smart Communication Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.



logo sia osdp US

Reader are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ v1 and v2.

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Bouclier ARC BQ

Standing the test of the time

Design to push the boundaries, The Architect® Blue reader design has been developed to withstand harsh environments, to operate outside (IP65 level) and to offer a high vandal proof resistance IK08.

Download the resistance reportVideo of ARCS-A/BT's crash test

Arc BQ Face Givre Feu

Create your own scalable configuration

The Architect® Blue series is intuitive and dynamic, made up of 6 interchangeable modules, easy to connect to a smart common RFID core & Bluetooth®.

The easy and cost saving modularity concept allows you to keep control of the access security management.



STid Schema ARC evolutivite BT US

Datasheet

  • Frequency
    Frequency: 13.56 MHz + Bluetooth®
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: STid Mobile ID® (NFC HCE & Bluetooth virtual cards), Apple Wallet (NFC Access virtual credentials), Orange Pack ID + MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass® (only CSN), iCLASS™ (only CSN*)
  • Functions
    Functions: Read only: CSN or private ID (sector/file) / Secure Protocol (Secure Plus) / Secure Read Write
  • Interfaces
    Interfaces: TTL Clock&Data (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) - Compatible with EasySecure interface
  • Reading distances
    Reading distances: 3 cm / 1.18’’ minimum with a QRcode (depending on the size of the code) / Up to 6 cm / 3.15’’ with a MIFARE DESFire® EV2 card - Up to 20 m / 65.6 ft with a Bluetooth® smartphone (adjustable distances on each reader)
  • Power supply
    Power supply: 7 VDC to 28 VDC / consumption 300 mA / 12 VDC max
  • Material
    Material: ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Color
    Color: black or white
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 156,5 x 80 x 36 mm / 6.3’’ x 3.15‘’ x 1.02’’ (general tolerance following ISO NFT 58-000 standard)
  • Operating temperatures
    Operating temperatures: - 30°C to + 60°C / - 22°F to + 140°F
  • Protection
    Protection: IK08 certified reinforced vandal-proof structure / Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (CEI NF EN 61086 homologation) / Humidity: 5 - 90%

*Our readers read only the iCLASS™ UID/Chip Serial Number. They do not read secure HID Global’s iCLASS™ cryptographic protections.



plan ARC BQ

Logo CE, FCC et UL

Part numbers

Picto flèche verte Read only

Secure - TTL: ARCS-R31-AQ/BT1-xx/1
Secure / Secure Plus - TTL: ARCS-S31-AQ/BT1-xx/1
Secure - RS485: ARCS-R33-AQ/BT1-7AB/1
Secure / Secure Plus - RS485: ARCS-S33-AQ/BT1-7AB/1
Secure / EasySecure Interface - RS485: ARCS-R33-AQ/BT1-7AA/1
Secure / Secure Plus / EasySecure Interface - RS485: ARCS-S33-AQ/BT1-7AA/1



Picto flèche rouge Controlled by protocol

Secure - SSCP® v1 RS485: ARCS-W33-AQ/BT1-7AA/1
Secure - SSCP® v2 RS485: ARCS-W33-AQ/BT1-7AD/1
Secure - OSDPTM RS485: ARCS-W33-AQ/BT1-7OS/1
