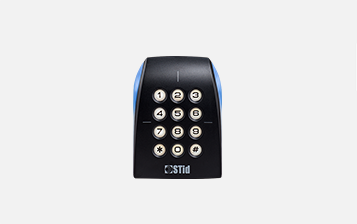

Architect® Blue Keypad Front Panel
Security requirements are constantly evolving, but you don’t need to replace your existing readers completely to integrate new functions. The modular design of the Architect® Blue range means you can easily add a keypad to your existing readers, meeting your growing needs while optimizing your investment.
Versatile & Enhanced Security
The capacitive, backlit keypad enables multi-factor identification by RFID card and PIN code. It can be adapted to various scenarios, such as secure access or activation of additional functions (e.g. alarm activation).
Eco-Design and Cost-Effective
Convert an existing card reader into a keypad reader without replacing it. This eco-responsible approach reduces your costs and simplifies maintenance.
Robust and Durable Design
Certified IK08, this front panel is designed to resist vandalism. Its design makes it extremely robust in tough environments.
-
Frequency13.56 MHz + Bluetooth®
-
StandardISO14443 types A & B, ISO18092, Bluetooth®
-
KeypadSensitive / capacitive keypad 12 keys (3 x 4) Backlighting can be activated / deactivated with an adjustable timeout option. Modes: Card OR Key / Card AND Key
-
Housing Materials & ColorABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
-
Dimensions & Weight106.6 x 80 x 25.7 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)
-
Operating temperatures-30°C / +70°C -22°F / +158°F
-
CertificationsCE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), UL, RoHS
-
ResistanceIP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95% / High resistant laser marking of keys
-
RobustnessIK08 certified and reinforced vandal-proof structure
-
Architect® Blue Keypad Front Panel
-
Part Number Black:SE4B11
-
Part Number White:SE4B21
-
