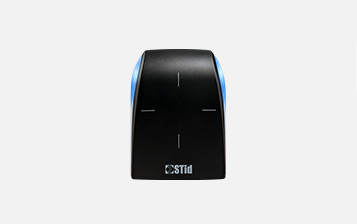

Architect® Blue Front Panel

Architect® Blue Front Panel

Architect® Blue Front Panel

Reduce maintenance costs while upgrading your Architect® Blue readers with interchangeable front panels. This solution offers extensive customization with various colors, material effects (Skin Effect), and logos, guaranteeing a harmonious aesthetic for your installations.

Eco-Design & Cost-Effective
Replacing only the front panel extends the life of the readers, without the need to replace the entire equipment.

Fully Customizable
Tailor the appearance of your readers to fit your specific needs with a wide range of design options, textures, and logo customizations. This flexibility ensures that your devices not only function optimally but also align perfectly with your brand or aesthetic preferences, enhancing both the user experience and the visual appeal of your installations.

  • Frequency
    13.56 MHz + Bluetooth®
  • Standard
    ISO14443 types A & B, ISO18092, Bluetooth®
  • Housing Materials & Color
    ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Dimensions & Weight
    106.6 x 80 x 25.7 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)
  • Operating temperatures
    -30°C / +70°C -22°F / +158°F
  • Certifications
    CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), UL, RoHS
  • Resistance
    IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
  • Robustness
    IK10 certified and reinforced vandal-proof structure
  • Architect® Blue Front Panel
    • Part Number Black:
      SE3B11
    • Part Number White:
      SE3B21
