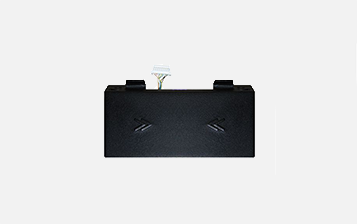

Architect® Multi-Prox Module
Architect® Multi Prox Module
Benefit from smooth technology migration and access the highest levels of security with the 125 kHz Multi-Prox module (EM®, HID Proximity®, AWID®, ioProx®, Indala®).
Simplified and Controlled Migration
Easily adapt your existing reader infrastructure to new technologies without the need to replace all your equipment. Once the migration is complete, the 125 kHz module can be removed without the need to reprogram the reader.
Versatile and Multi-Technology
The module supports a wide range of 125 kHz technologies: EM®, HID Proximity®, AWID®, ioProx®, Indala®, and more.
Eco-Design and Cost Efficient
The modularity lowers your acquisition costs while simplifying maintenance and enabling seamless upgrades to your infrastructure.
-
Dimensions & Weight39 x 80 x 26 mm / 1.5 x 3.1 x 1.1 in (general tolerance following ISO NFT 58-000 standard)
-
Read Range0 - 8 cm / 0 - 3.1 in with a 125 kHz card
-
Frequency125 kHz
-
125 kHz Credential CompatibilityHID Proximity®, INDALA®, IOPROX®, AWID®, EM®
-
Housing Materials & ColorABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
-
RobustnessIK10 certified and reinforced vandal-proof structure
-
ResistanceIP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%
-
CertificationsCE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), UL, RoHS
-
Operating Temperature-30°C / +70°C -22°F / +158°F
-
Architect® Prox Module
-
Part Number Black:SE8M10
-
Part Number White:SEM820
-
