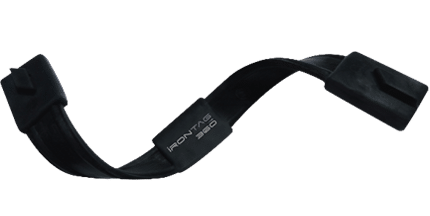

IronTag® 360 – UHF EPC1 Gen2 360° flexible on-metal

IronTag® 360 – UHF EPC1 Gen2 360° flexible on-metal

The IronTag® 360 is a flexible tag perfectly suited for the identification of cables and cylinders even in the most demanding industries. Designed to offer the best performances on any surfaces including metal, the IronTag® 360 ensures both reading reliability, whatever the position of the tag, and outstanding durability in all your identification and tracking applications.

Tags for exacting applications

The IronTag® 360 is well suited for the most exacting industries. This new generation of flexible tags is compliant with EPC Class 1 Gen 2 / ISO18000-63 international RFID standard. The Irontag® series fits the contactless identification requirements and all the tracking / maintenance (MRO) applications of metal parts: IT, returnable (gas cylinders, containers, etc.), pipelines, tools, weapons, in-plant vehicles…

High resistance in harsh environments

The IronTag® 360 improves tracking and automated management of manufacturing processes in harsh environments. Dustproof and waterproof protected (IP68), the IronTag® series is qualified and certified to withstand extreme conditions: heat shocks and fast fluctuations, pressure (>10 bars), liquid (water, detergents, alcohols, oils, petrol, gas, kerosene, skydrol, etc.) and flames.

  • Frequency
    915 MHz for FCC Part15 (902-928 MHz) and ETSI 302-208 v2.1.1 (915-921 MHz)
  • Chip
    Impinj® Monza® X-2K Dura - EPC 128 bits, user 2176 bits, TID 96 bits
  • Material
    Silicone Elastosil LR3170-40 A-B
  • Dimensions
    Length before installation 140 mm / 5.51’’ - Flexible for variable cylindrical surfaces typ. up to 15 to 40 mm / 0.59’’ to 1.57’’ - Weight: 15g
  • Storage Temperature
    -60°C to +150°C / -112°F to +302°F
  • Standards
    EPC Class 1 GEN 2 / ISO18000-63 / SAE AS5678 / DO-160
  • Reading distances
    0 - 3 m / 0 - 9.8 ft on any surface, metal included
  • Color
    Black
  • Operating temperatures
    -55°C to +110°C / -67°F to +230°F
  • Resistance
    IP68 certified - Dust and water resistant / temperatures, pression, humidity… / High temperature cycles / -55°C (-67°F) according to DO-160 cycle, thermal variations: +5°C/mn (+41°F/mn) / +110°C (+230°F) according to DO-160 cycle, thermal variations: 5°C/mn (+41°F/mn) / Altitude/pressure variations: 0 ft to 25000 ft / 2.6 hPa/s / Excess pressure 15000 ft to 35000 ft in 15 sec / Vibrations: all categories according to DO-160 / SPX902 / Hydrophobic material (humidity, ice, mushrooms, mold, sand, dust, solar radiation resistant) / Salt fog: 5 wt% NaCl, 35°C, RH 100%, 96h / Liquid resistant (DO-160 cat. F): water (F34), hydraulic fluid (H-537, skydrol), oil (O-155) / Frame resistant (UL94-V0 - self-extinguishing)
    • TMSW49B3361_S
      Impinj® Monza® X-2K
