MA1 Module

MA1 Module

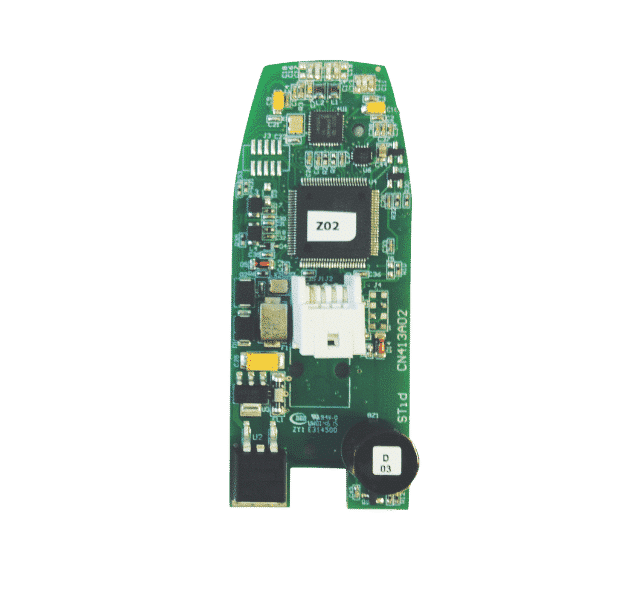

13.56 MHz DESFire® EV3 Mullion OEM Module

The MA1 module is a versatile high-security solution designed to seamlessly integrate into third-party applications. Compact and feature-rich, it supports the latest contactless RFID technologies, ensuring optimal performance for access control and identification systems. With advanced encryption standards, compatibility with multiple protocols, and a robust embedded design, the module guarantees exceptional security, flexibility, and ease of use for a wide range of environments.

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Seamless Integration
The MA1 module is engineered for easy integration into third-party applications, offering maximum design flexibility for custom access control solutions. Its compact size, embedded antenna, and support for multiple interfaces (Wiegand, RS232, OSDP™, and SSCP®) ensure effortless adaptation to any system architecture.

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

N/A

  • protocols

    Wiegand

    SSCP®

    OSDP™

  • technologies

    Apple Wallet™

    13.56 MHz MIFARE® DESFire® EV3

  • Frequency
    13.56 MHz
  • Standard
    ISO14443 types A & B, ISO18092
  • 13.56 MHz Credentials
    MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
  • Virtual Credential Compatibility
    STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes
  • Keypad
    Reader_KeypadUndefined
  • Reader_Antenna
    Reader_Antenna_0
  • Wiegand Interface
    Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
  • Clock & Data
    Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
  • RS485
    RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication), EasyRemote (transparent) and RemoteSecure (SSCP® v1 transparent)
  • SSCP Protocol
    RS485 output - Controlled by SSCP® v1 & v2 secure communication protocols
  • Light Indicator
    2 RGB LEDs - 360 colors
  • Tamper Detection
    Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
  • Configurations
    Configuration by RFID card, software, or controlled by external command (0V) depending on the interface
  • Operating Voltage
    9 - 15 VDC
  • Operating Temperature
    -30°C / +70°Cn-22°F / +158°F
  • Certifications
    CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
  • Connections
    3 m / 9.8 ft cable with plug-in connector
  • Range
    0 - 6 cm / 0 - 2.4 in with a MIFARE® DESFire® EV3 card
  • Current Draw
    130 mA/12 VDC max
  • Dimensions & Weight
    85 x 35 x 12 mm / 3.35 x 1.38 x 0.47 in (general tolerance following ISO NFT 58-000 standard)
  • Resistance
    Conformal-coated electronic board compliant with IEC NF EN 61086 - Resistant to weather, water, and dust (excluding connectors)
  • TTL (Wiegand / Clock&Data)
    • CSN serial number
      MA1-R31-B/103-xx/0
    • CSN serial number + MIFARE® Classic Private ID
      MA1-R31-B/PH1-xx/0
    • Secure Private ID and/or CSN serial number
      MA1-R31-B/PH5-xx/0
    • Secure Private ID and/or CSN serial number + Secure communication
      MA1-S31-B/PH5-xx/0
  • RS485
    • CSN serial number + MIFARE® Classic Private ID
      MA1-R33-B/PH1-7AB/0
    • Secure Private ID and/or CSN serial number
      MA1-R33-B/PH5-7AB/0
    • Secure Private ID and/or CSN serial number + Secure communication
      MA1-S33-B/PH5-7AB/0
    • Secure Private ID and/or CSN serial number compatible with EasySecure interface
      MA1-R33-B/PH5-7AA/0
    • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
      MA1-S33-B/PH5-7AA/0
    • Secure Private ID and/or CSN serial number compatible with EasyRemote interface (transparent)
      MA1-R33-B/PH5-7BB/0
  • OSDP Protocols
    • CSN serial number
      MA1-W33-B/103-7OS/0
    • Secure Private ID and/or CSN serial number
      MA1-W33-B/PH5-7OS/0
  • SSCP Protocols
    • SSCP® v1 protocol
      MA1-W33-B/PH5-7AA/0
    • SSCP® v2 protocol
      MA1-W33-B/PH5-7AD/0
    • SSCP® v1 protocol compatible with RemoteSecure interface
      MA1-W33-B/PH5-7BB/0
    • SSCP® v1 protocol compatible with RemoteSecure addressable interface
      MA1-W33-B/PH5-7BC/0
