MS2 Module

MS2 Module

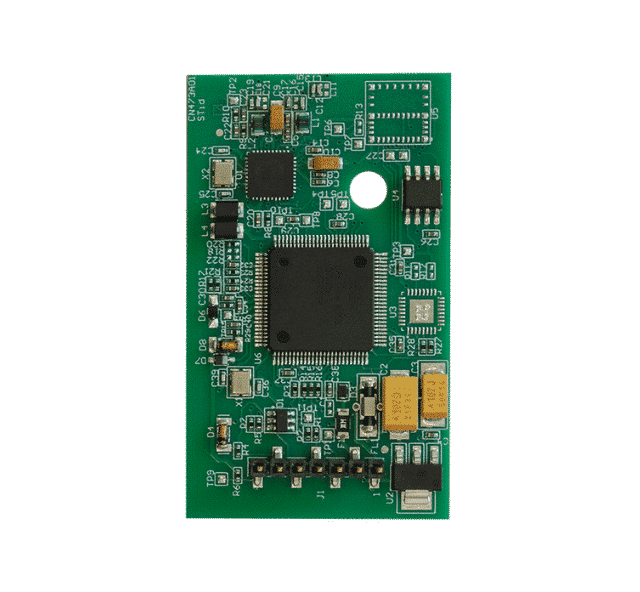

Compact 13.56 MHz DESFire® EV3 OEM Embedded Module

The MS2 module is a compact, high-security identification solution crafted for today’s demanding access control and contactless identification applications. With its integrated antenna and advanced encryption capabilities, the module ensures robust protection and seamless performance. Designed for both new installations and system upgrades, the MS2 provides a scalable and reliable solution to meet evolving security requirements.

Open Technologies
The module is based on open technologies, standards and recognized public encryption algorithms. This ambition runs counter to proprietary technologies and enables organizations to keep control of their security policy.

N/A

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

Compact Integration for Seamless Deployment
The ultra-compact design of the MS2 simplifies integration into a wide variety of devices, from kiosks and terminals to industrial control systems. Its integrated antenna minimizes the need for external components, reducing installation complexity and costs. Designed for quick and reliable deployment, this module excels in scenarios where space is limited but high-security identification is essential.

  • protocols

    Wiegand

    SSCP®

  • technologies

    Apple Wallet™

    13.56 MHz MIFARE® DESFire® EV3

  • Frequency
    13.56 MHz
  • Standard
    ISO14443 types A & B, ISO18092
  • 13.56 MHz Credentials
    MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
  • Virtual Credential Compatibility
    STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes
  • Keypad
    Reader_KeypadUndefined
  • Reader_Antenna
    Reader_Antenna_0
  • Wiegand Interface
    Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
  • Clock & Data
    Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
  • RS232
    RS232-TTL output
  • SSCP Protocol
    RS232-TTL output - Controlled by SSCP® v1 & v2 secure communication protocols
  • Light Indicator
    1 RGB Bi-color LED – Displays power status, firmware version, communication activity, and configuration acknowledgment
  • Configurations
    Configuration by RFID card, software, or controlled by external command (0V) depending on the interface
  • Operating Voltage
    4 - 9 VDC
  • Operating Temperature
    -30°C / +70°Cn-22°F / +158°F
  • Mounting
    5 mm (0.2 in) diameter mounting hole
  • Certifications
    CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada)
  • Connections
    HE14 male 7-pin connector
  • Dimensions & Weight
    60 x 35 x 5 mm / 2.36 x 1.38 x 0.20 in (general tolerance following ISO NFT 58-000 standard)
  • Resistance
    Conformal-coated electronic board compliant with IEC NF EN 61086 - Resistant to weather, water, and dust (excluding connectors)
  • Range
    0 - 5 cm / 0 - 2 in with a MIFARE® DESFire® EV3 card
  • Current Draw
    180 mA/5 VDC max
  • RS232
    • Secure Private ID and/or CSN serial number
      MS2-R31-A/PH5-5AB/0
    • Secure Private ID and/or CSN serial number + Secure communication
      MS2-S31-A/PH5-5AB/0
  • TTL (Wiegand / Clock&Data)
    • CSN serial number
      MS2-R31-A/103-xx/0
    • Secure Private ID and/or CSN serial number
      MS2-R31-A/PH5-xx/0
    • Secure Private ID and/or CSN serial number + Secure communication
      MS2-S31-A/PH5-xx/0
  • SSCP Protocols
    • SSCP® v1 protocol
      MS2-W31-A/PH5-5AA/0
    • SSCP® v2 protocol
      MS2-W31-A/PH5-5AD/0
