ARC-A - 13.56 MHz DESFire® EV3 standard reader

ARC-A - 13.56 MHz DESFire® EV3 standard reader

By developing the Architect® innovative readers, STid has created the perfect blend of high security and scalability. ARC-A is a secure and vandal proof RFID card reader.



The most awarded access control reader around the world bandeau logo Trophees STid 2017 V2

Logo of Architect blue for the ARC-A by STid Industry

The perfect blend of high security and scalability

  • Picture from the left profile of a black ARC-A by STid Industry
  • Picture from the front side of a black ARC-A by STid Industry
  • Picture from the right profile of a black ARC-A by STid Industry
  • Picture from the right side of a black ARCS-A by STid Industry
  • Picture from the back of a black ARC-A by STid Industry
  • Picture from the left side of a black ARC-A by STid Industry
  • Picture from the left profile of a white ARC-A by STid Industry
  • Picture from the front side of a white ARC-A by STid Industry
  • Picture from the right profile of a white ARC-A by STid Industry

  • Picture from the back of a white ARC-A by STid Industry
  • Picture from the left side of a white ARC-A by STid Industry

Welcome to high security

Logos representing the high security of the ARC-A by STid Industry

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN). It’s a recognition of our unique know-how, the technological and security expertise that are implemented in your access architecture, whether new or existing.

ARC-A reader uses the latest MIFARE® contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI).



logos nxp mifare em nfc ARC A

Logo of SECARD for the ARC-A by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARC-A by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp

Reader are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ V1 et V2

logo sscp

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

 Picture showing the self-protection of the ARC-A by STid Industry

Create your own upgradable configuration

The Architect® series is intuitive and dynamic, and consists of 6 interchangeable modules that can easily be connected to a common smart RFID core.

This easy and cost saving modular approach allows autonomy on the security access management.



STid Schema ARC evolutivite BT US

arc modularity video
Learn more about
Architect®Series modularity

Let your imagination flow

A signature reflects personal style choices. The design of Architect® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

A spectacular experience

Picture for the spectacular experience of the ARC-A by STid Industry

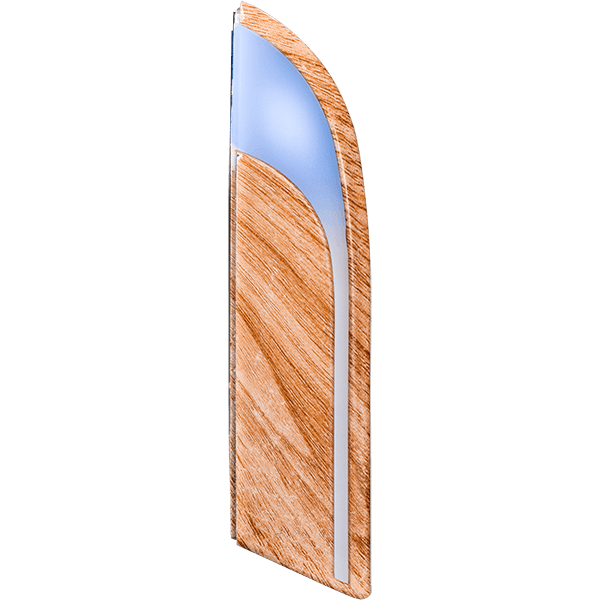

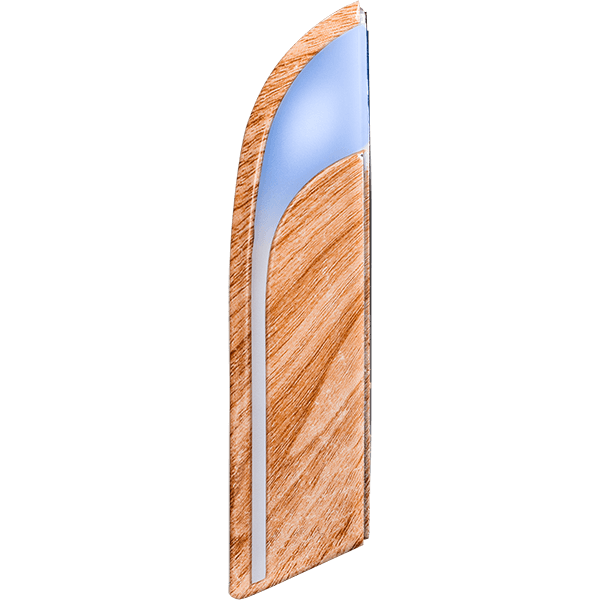

"Skin effect" new customization technology

  • Picture of an ARC-A from the left profile with a brow hood skin
  • Picture of an ARC-A from the front side with a brow hood skin
  • Picture of an ARC-A from the right profile with a brow hood skin
  • Picture of an ARC from the left side with a brow hood skin
  • Picture of an ARC from the right side with a brow hood skin
  • Picture of an ARC-A from the left profile with a grey hood skin
  • Picture of an ARC-A from the front side with a grey hood skin
  • Picture of an ARC-A from the right profile with a grey hood skin
  • Picture of an ARC-A from the left profile with a reptile skin
  • Picture of an ARC-A from the front side with a reptile skin
  • Picture of an ARC-A from the right profile with a reptile skin
  • Picture of an ARC-A from the left profile with a neutral hood skin
  • Picture of an ARC-A from the front side with a neutral hood skin
  • Picture of an ARC-A from the right profile with a neutral hood skin
  • Picture of an ARC-A from the left profile with a joker skin
  • Picture of an ARC-A from the front side with a joker skin
  • Picture of an ARC-A from the right profile with a joker skin
  • Picture of an ARC-A from the left profile with the USA flag skin
  • Picture of an ARC-A from the front side with the USA flag skin
  • Picture of an ARC-A from the right profile with the USA flag skin
  • Picture of an ARC-A from the left profile with a military skin
  • Picture of an ARC-A from the front side with a military skin
  • Picture of an ARC-A from the right profile with a military skin
  • Picture of an ARC-A from the left profile with a color skin
  • Picture of an ARC-A from the front side with a color skin
  • Picture of an ARC-A from the right profile with a color skin
  • Picture of an ARC-A from the left profile with a skull skin
  • Picture of an ARC-A from the front side with a skull skin
  • Picture of an ARC-A from the right profile with a skull skin
  • Picture of an ARC-A from the left profile with a red marble skin
  • Picture of an ARC-A from the front side with a red marble skin
  • Picture of an ARC-A from the right profile with a red marble skin
  • Picture of an ARC-A from the left profile with a black dotes skin
  • Picture of an ARC-A from the front side with a black dotes skin
  • Picture of an ARC-A from the right profile with a black dotes skin
  • Picture of an ARC-A from the front side with a green flames skin
  • Picture of an ARC-A from the front side with a graph skin
  • Picture of an ARC-A from the front side with a water skin

Download « Skin effect » catalog

Data sheet

  • Frequency
    Frequency: 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass® (CSN only), iCLASS™ cards (CSN only)*, STid Mobile ID® (NFC virtual card), Apple Wallet (NFC Access virtual credential)
  • Functions
    Functions: Read only: CSN or private ID (sector/file) / Secure Protocol (Secure Plus) Read- Write (SSCP and SSCP2) / Read-Write serial number and secure OSDP™
  • Interfaces
    Interfaces: TTL Data Clock (ISO2) or Wiegand output (encrypted option - S31) / RS232 output / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
  • Reading distances
    Reading distances: 0 - 8 cm
  • Power supply
    Power supply: 7 VDC to 28 VDC / Consumption : 130 mA/12 VDC max
  • Material
    Material: ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Color
    Color: Black or White – Many shell customization possibilities
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 106,64 x 80 x 25,70 mm / 4.21’’ x 3.15‘’ x 1.02’’
  • Operating temperatures
    Operating temperatures: - 30°C to + 70°C / - 22°F to + 158°F
  • Storage temperature
    Storage temperature: -40°F to +85°F / -40° F to +185°F
  • Protection
    Protection: IK10 certified reinforced vandal proof structure / Accelerometer-based tamper detection system
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 0 - 95%

*Our readers can only read the UID/Chip Serial Number.They cannot read secure HID Global’s iCLASS™ cryptographic protections.



Picture of the ARC-A with its dimensions

           CE FCC Logos grey 250px

Part numbers

Picto R Read Only
CSN TTL Wiegand / Data Clock: ARC-R31-A/103-xx/y
Easyline pre-configured offer - Wiegand: ARC-R31-A/PC2-xx/1
TTL: ARC-R31-A/PH5-xx/y
Secure / Secure Plus - TTL: ARC-S31-A/PH5-xx/y
Secure - RS232: ARC-R32-A/PH5-5AB/y
Securise - RS485: ARC-R33-A/PH5-7AB/y
Secure / EasySecure - RS485: ARC-R33-A/PH5-7AA/y
Secure / Secure Plus - RS485 : ARC-S33-A/PH5-7AB/y
Secure / Secure Plus / EasySecure - RS485: ARC-S33-A/PH5-7AA/y
Secure / EasyRemote - RS485: ARC-R33-A/PH5-7BB/y
picto RW Controlled by protocol
SSCP® v1 - RS232: ARC-W32-A/PH5-5AA/y
SSCP® v1 - RS485: ARC-W33-A/PH5-7AA/y
SSCP® v1 - RS485 - RemoteSecure interface:  ARC-W33-A/PH5-7BB/y
SSCP® v1 - RS485 - RemoteSecure addressable interface: ARC-W33-A/PH5-7BC/y
SSCP® v2 - RS485: ARC-W33-A/PH5-7AD/y
Secure OSDPTM - RS485: ARC-W33-A/PH5-7OS/y
  y : color casing (1 : black - 2 : white)
