ARC-O - 13.56 MHz LEGIC® Advant biometric reader

ARC-O - 13.56 MHz LEGIC® Advant biometric reader

The ARC-O is a secure card reader, combining RFID LEGIC® technologies and biometrics module of digital fingerprints. By developing the Architect® innovative readers, STid has created the perfect blend of high security and scalability.

The most awarded access control reader around the world bandeau logo Trophees STid 2017 V2

Logo of Architect blue for the ARC-D by STid Industry

The perfect blend of high security and scalability

  • Picture from the left profile of a black ARC-D by STid Industry
  • Picture from the front side of a black ARC-D by STid Industry
  • Picture from the right profile of a black ARC-D by STid Industry
  • STID 066 bis
  • Picture from the back of a black ARC-D by STid Industry
  • STID 066



Welcome to high security

Logos representing the high security of the ARC-O by STid Industry

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN). It’s a recognition of our unique know-how, the technological and security expertise that are implemented in your access architecture, whether new or existing.

ARC-O reader use the latest LEGIC® contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI).



logos legic nxp mifare for ARC-O

Manage with ease a multi-factor identification

Picture of someone using the ARC-O

The ARC-D Architect® reader combines the latest RFID MIFARE Plus® & MIFARE® DESFire® EV1/EV2 technologies with fingerprint recognition to enhance the security of your access control system.

bloc transparent 600x405px

Fingerprint management

logo cnil for ARC-O

The reader offers several fingerprint management possibilities depending on your security needs.

  • Fingerprint templates directly stored in the RFID card (CNILFrench legislation compliance)
  • Fingerprint templates stored in the reader or in the system
  • Biometric derogation to manage one-time visitor or difficult finger etc.



logo segic for ARC-M

STid provide smart software tools to stay in control of your security. SEGIC allows the user, the installer or the integrator to realize easily secure programming access readers.

logo sscp for ARC-M

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

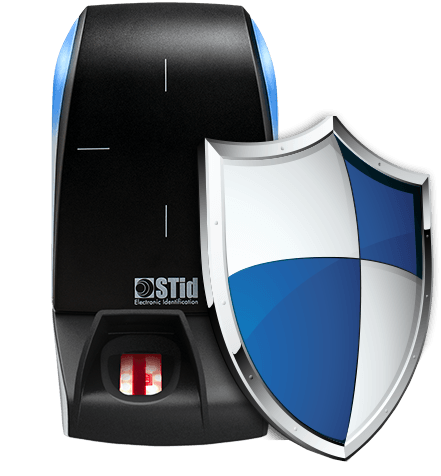

 Picture showing the self-protection of the ARC-D by STid Industry

Let your imagination flow

A signature reflects personal style choices. The design of Architect® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

Data sheet

  • Frequency
    Frequency: 13.56 MHz
  • Standards
    Standards: 13.56 MHz - ISO14443A, ISO15693, LEGIC® RF / Certification : CE (Europe) & RoHS
  • Chip
    Chip: LEGIC® Advant & Prime
  • Functions
    Functions: Read only: CSN or private ID (sector/file) / Read- Write (SSCP)
  • Interfaces
    Interfaces: Clock&Data protocol (ISO2), Wiegand, RS232, RS485
  • Reading distances
    Reading distances: 0 - 8 cm
  • Power supply
    Power supply: 7 VDC to 28 VDC / Consumption: 280 mA/12 VDC max
  • Material
    Material: ABS-PC UL-V0
  • Color
    Color: Black - Many cover customization options
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 148.6 x 80 x 71.3 mm / 5.85’’ x 3.14’’ x 2.8’’
  • Operating temperatures
    Operating temperatures: -10°C / +50°C
  • Protection
    Protection: Accelerometer-based tamper detection system
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 0 - 95%

  *Our readers can only read the UID/Chip Serial Number. They cannot read secure HID Global’s iCLASS™ cryptographic protections.



plan ARC D 2

          CE

Create your own upgradable configuration

The Architect® series is intuitive and dynamic, and consists of 4 interchangeable modules that can easily be connected to a common smart RFID core.

This easy and cost saving modular approach allows autonomy on the security access management.



STid Schema ARC evolutive LEGIC US

arc modularity video
Learn more about
Architect®Series modularity

Part numbers

Picto R Read Only
Secure - Clock&Data: ARC-R31-O/LE2-xx/1
Secure - RS232: ARC-R32-O/LE2-5AB/1
Secure - RS485:

ARC-R33-O/LE2-7AB/1

picto RW Controlled by protocol
Secure - RS232: ARC-W32-O/LE2-5AA/1
Secure - RS485: ARC-W33-O/LE2-7AA/1
