The Architect® Hybrid 125 kHz + 13.56 MHz access control reader (ARC-I) optimize management of your technological migrations. Perfect blend of two identification technologies, it's designed to facilitate your migrations to advanced security levels.



The most awarded access control reader around the world bandeau logo Trophees STid 2017 V2

Logo of Architect blue for the ARC-A by STid Industry

The perfect blend of high security and scalability

  • Picture from the left profile of a black ARC-I by STid Industry
  • Picture from the front side of a black ARC-I by STid Industry
  • Picture from the right profile of a black ARC-I by STid Industry

Make your technological migrations easy

The Architect® Hybrid reader makes it easy to manage extensions, upgrades and technology migrations. It combines two identification frequencies: 125 kHz (EM, Crosspoint…) and 13.56 MHz (all the MIFARE® chips including DESFire® EV2, NFC, CSN of iCLASS™*, CSN of PicoPass®…). If you need to set up a complex multi-site configuration, this reader can be used to read a range of different cards.

Picture of a women jumping with the sunset for ARC-I by STid Industry

Welcome to high security

Logos representing the high security of the ARC-I by STid Industry

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN). It’s a recognition of our unique know-how, the technological and security expertise that are implemented in your access architecture, whether new or existing

ARC-I reader uses the latest MIFARE® contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI).



logos nxp mifare em nfc cps3 for ARC-I

Logo of SECARD for the ARC-I by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARC-I by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp US

Reader are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ V1 et V2

logo sscp US

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

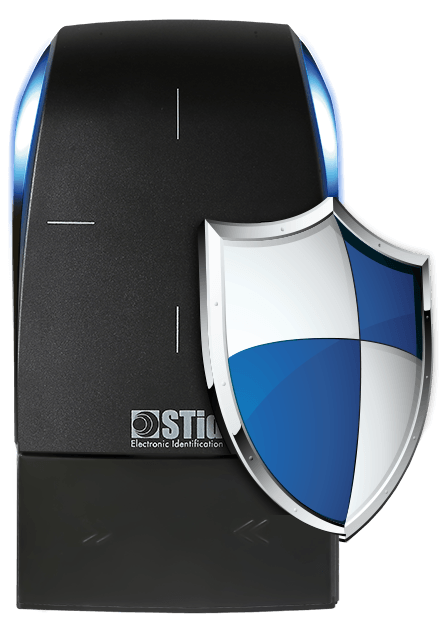

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Picture showing the self-protection of the ARC-I by STid Industry

Standing the test of time

Designed to push the boundaries, the ARC-I reader design has been developed to withstand harsh environments, to operate outside (IP65 level) and to offer a high impact resistance (IK10).

Download the resistance reportVideo of the ARC-I's crash test

Picture showing the resistance of the ARC-I by STid Industry

Create your own upgradable configuration

The Architect® series is intuitive and dynamic, and consists of 6 interchangeable modules that can easily be connected to a common smart RFID core.

This easy and cost saving modular approach allows autonomy on the security access management.



STid Schema ARC evolutivite BT US

arc modularity video
Learn more about
Architect®Series modularity

Let your imagination flow

A signature reflects personal style choices. The design of Architect® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

Datasheet

  • Frequency
    Frequency: 125 kHz + 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: EM42xx / EM4x50 / Format Wiegand 26, 34, 35 and 37 bits / Nedap / Crosspoint. MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1 & EV2, NFC (HCE), SMART MX, CPS3, PicoPass® (CSN only), iCLASS™ (CSN only)*, CIMS Ministry of Defense card “Cartes Agents”...
  • Functions
    Functions: Read only: CSN or private ID (sector/file) / Secure Protocol (Secure Plus) / Serial number and secure OSDP™ V1 (plain communication) & V2 (SCP secure communication) - Secure Read Write (SSCP & SSCP2)
  • Interfaces
    Interfaces: 2 variants: - TTL/RS232 protocol: Data Clock (ISO2), Wiegand (ciphered mode S31) or RS232 (ciphered mode S32) - TTL/RS485 protocol: Data Clock (ISO2), Wiegand (ciphered mode S31) or RS485 (ciphered mode S33). Compatible with EasySecure interface
  • Reading distances
    Reading distances: Up to 8 cm / 3.15’’ with a 125 kHz card / Up to 8 cm / 3.15’’ with a MIFARE DESFire® EV2 card
  • Power supply
    Power supply: 7 VDC to 28 VDC / Consommation 160 mA / 12 VDC max
  • Material
    Material: ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Color
    Color: black or white - Many shell customization possibilities
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 145.64 x 79.93 x 25.7 mm / 5.71’’ x 3.11’’ x 0.98’’
  • Operating temperatures
    Operating temperatures: - 30°C to + 70°C / - 4°F to + 158°F
  • Protection
    Protection: IK10 certified reinforced vandal proof structure / Accelerometer-based tamper detection system with key deletion option (patented)
  • Resistance
    Resistance: IP65 level - Weather-resistant with waterproof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%

*Our readers can only read the UID/Chip Serial Number.They cannot read secure HID Global’s iCLASS™ cryptographic protections.



Standart dimension Dec2017 EN

picto CE FCC UL

Part numbers



Picto R Read only

Easyline pre-configured offer - Wiegand:ARC-RX1-I/PC2-3x/1
Secure - TTL Wiegand / Clock&Data: ARC-RX1-I/BF5-xx/y
Secure / Secure Plus - TTL Wiegand / Clock&DataL: ARC-SX1-I/BF5-xx/y
Secure - RS232: ARC-RX2-I/BF5-5AB/y
Secure - RS485: ARC-RX3-I/BF5-7AB/y
Secure / Secure Plus - RS485: ARC-SX3-I/BF5-7AB/y
Secure / EasySecure Interface - RS485: ARC-RX3-I/BF5-7AA/y
Secure / Secure Plus / EasySecure Interface - RS485: ARC-SX3-I/BF5-7AA/y



picto RW Controlled by protocol

Secure - SSCP® v1 - RS232: ARC-WX2-A/BF5-5AA/y
Secure -SSCP® v1 - RS485: ARC-WX3-A/BF5-7AA/y
Secure -SSCP® v2 - RS485: ARC-WX3-A/BF5-7AD/y
Secure - OSDPTM v1 & v2 - RS485: ARC-WX3-A/BF5-7OS/y

y : color casing (1 : black - 2 : white)
