Mixed vehicle & driver identification

SPECTRE nano, the most compact UHF and Bluetooth® reader on the market, improves the user experience while securing and eliminating vehicle access lines.

 logo of Trophees STid 2017 for SPECTRE

Logo SSCP Certified blue

Logo spectrenano 650





Your best agent to secure your parking access

      VERSATILE | SECURE | INSTINCTIVE | COMPACT

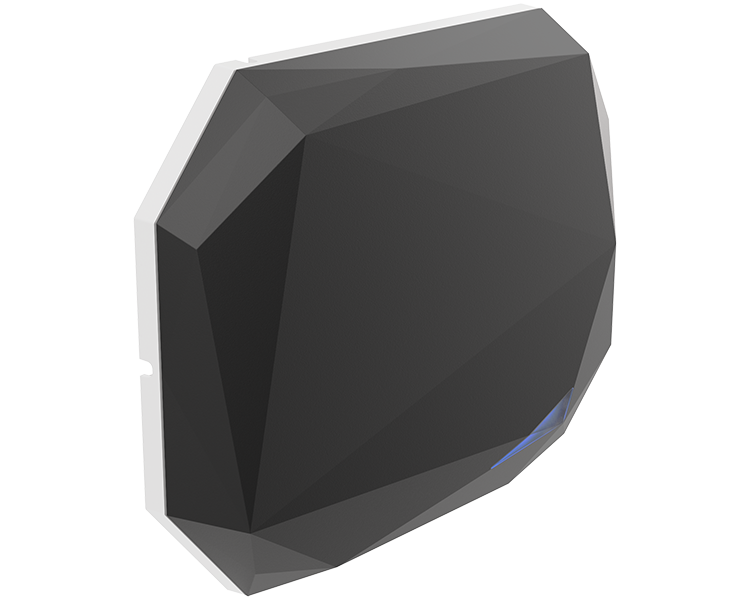

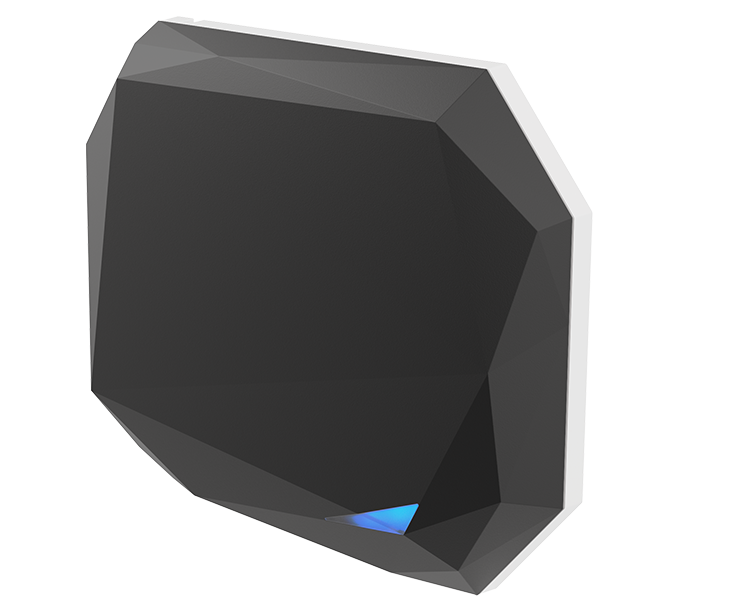

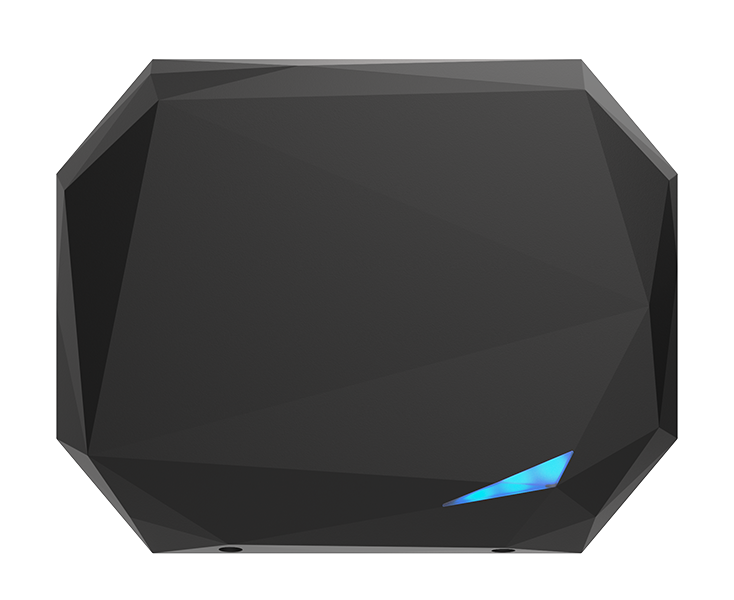

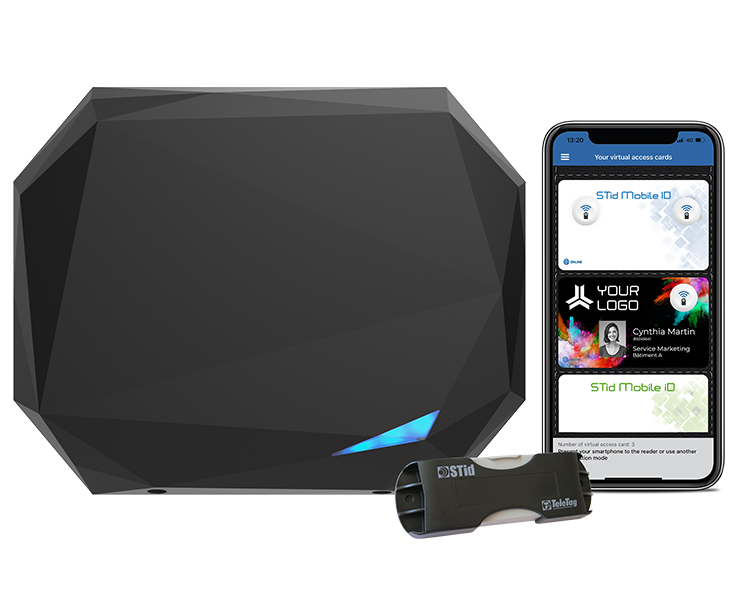

  • Spectrenano slide 600px 1
  • Spectrenano slide 600px 1
  • Spectrenano slide 600px 1
  • Spectrenano slide 600px 1

Multi-technology at the service of instinctive identification

SPECTRE nano facilitates access control for vehicles and drivers with different profiles (visitors, employees, tenants, etc.) thanks to multiple identification technologies.

Multi techno 1

Passive UHF technology

The reader provides UHF identification up to 6 m*.

The passive credentials (without battery) require no maintenance and have an unlimited life span.



Multi techno 2

Bluetooth® Smartphones

The reader offers many identification modes - long distance, hands-free or Proximity - to make your access control both secure and instinctive!

Fully integrated into the STid Mobile ID® ecosystem, SPECTRE nano allows users to use their virtual card for both parking and pedestrian access.



Multi techno 3

Mixed identification

SPECTRE nano reads heterogeneous identifiers:

  • the virtual card for smooth management of visitor and employee access,
  • the UHF windshield tag for tracking vehicle fleets
  • both simultaneously for vehicle and driver identification.

Security controlled from end-to-end

The reader benefits from the highest levels of security, guaranteeing the authenticity and confidentiality of data, using encryption methods recognized and recommended by independent organizations (ANSSI, FIPS, etc.):

  • Encrypted / signed credentials to ensure anti-cloning and anti-replay protection.
  • EAL5+ certified key storage.
  • Self-protection function to erase security keys.
  • Secure end-to-end bidirectional communication using SSCP® and Open Supervised Device Protocol (OSDP™) protocols.





Logos RGPD et République Française

logo sia osdp US

Readers are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ V1 and V2.

logo sscp spac US

Readers are compatible with the latest generation of open protocol SSCP® (Secure Smart Communication Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Simplified management of your access control

Logo of Ultrys for SPECTRE by STid Security



The software tool to secure your parking access



The ULTRYS kit makes you autonomous in programming your UHF & Bluetooth® SPECTRE nano reader fleet and your user credentials.

Easy to use, the UHF programming software is a practical tool that is quick and intuitive to use.





Manage your configurations in 3 stepsPicture of a laptop with Ultrys

Icon for the creation of the configuration of Ultrys

Creation
of the configuration

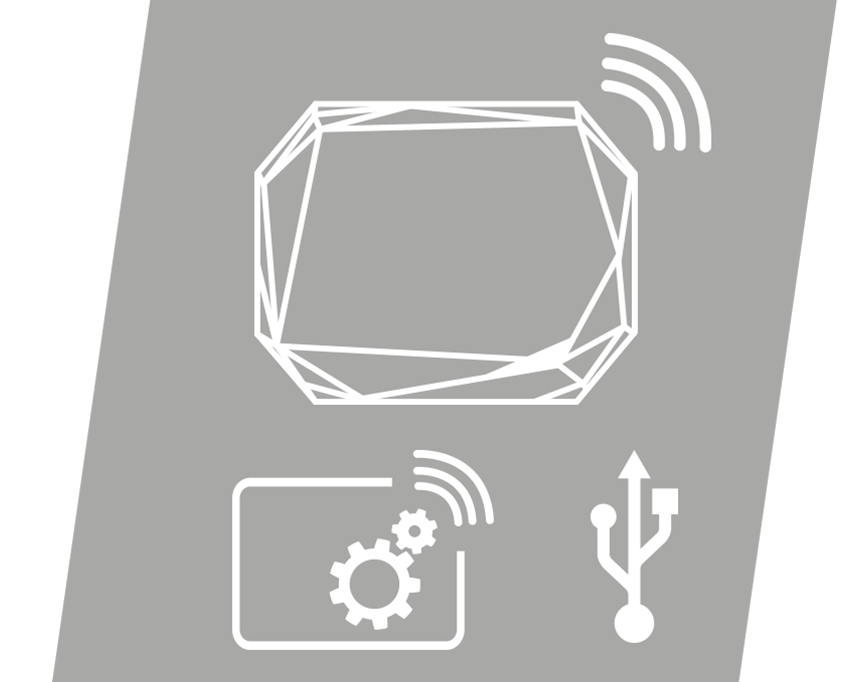

visuel ULTRYS nano

Programmation
of the reader via
UHF card or USB cable



Icon for the encoding user credentials with Ultrys

Encoding
of user credentials

Benefits

  • New ergonomic design

  • Enhanced levels of security

    • Protection of configuration

    • Authenticated encryption of the EPC

  • Various configuration tools

  • Multi-user and multi-rights management

  • Expert mode encoding

Use cases

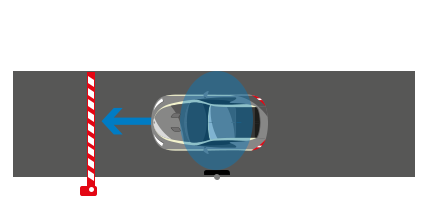

  • Driver's side identification

    identification 1voiesimplecote spectre

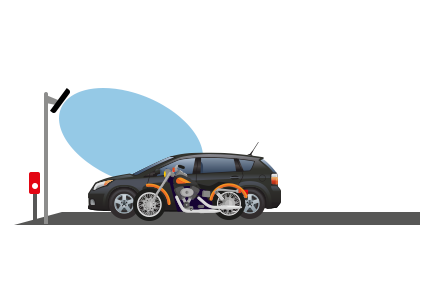

  • 1 way identification: car, motorbike...

    identification parc spectre voiture moto
  • Bus identification - Bus station

    identification parc spectre BUS

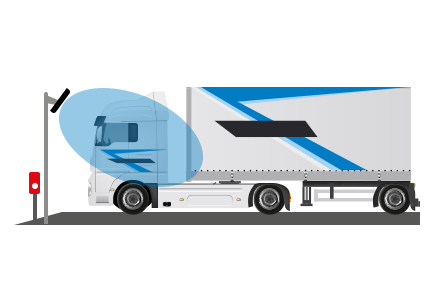

  • Identification of heavy trucks

    identification parc spectre camion

Standing the test of time

It integrates a reinforced anti-vandal structure IK10 to resist shocks and malicious acts. IP65, it is designed for outdoor installation in harsh environments: vibration, dust, heavy rain, saline environments, etc.

Let your imagination flow

STid offers a range of customization options to tailor your reader
to your corporate identity and integrate it fully into its installation environment

Discover our compatible tags

STid offers a complete range of passive or virtual Bluetooth® UHF EPC1 GEN2 tags in a variety of form factors for the long range identification of vehicles (AVI) and their drivers.

  • Various form factors to meet all your demanding applications
  • Numerous customisation possibilities: encoding, numbering, printing of your logo, etc.

Produits ID 300 1

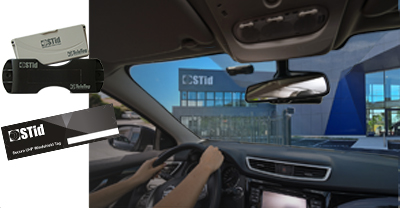

UHF windshield

tags and labels



Produits ID 300 2

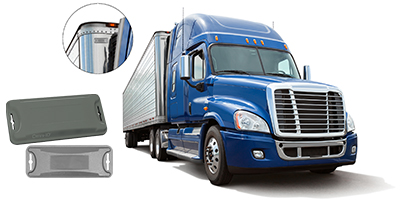

UHF rugged tags

Installation on metal





Produits ID 300 3

UHF or dual frequency

ISO cards and key fobs



Produits ID 300 4

Virtual cards with

STid Mobile ID® application

Learn more

Datasheet

  • Frequency
    Frequency: UHF
  • Standards
    Standards: ISO18000-63 / EPC1 Gen 2 - 2 versions: low band 865 - 868 MHz / high band 902 - 928 MHz / Certifications: CE, ETSI, FCC Part 15, UL
  • Chip
    Chip: EPC1 Gen 2
  • Functions
    Functions: Read only EPC (UHF) / CSN (Bluetooth®) or secure EPC encrypted / signed (UHF) / private ID (Bluetooth®) Controlled by protocol (read/write)
  • Reading distances
    Reading distances: Up to 6 m with ETA tag and TeleTag® passive tag / Up to 20 m with a Bluetooth® smartphone / Adjustable reading range on each reader
  • Power supply
    Power supply: Typ. 12 VDC (9 - 36 VDC) / Consumption: 900 mA / 12 VDC
  • Material
    Material: ABS and polycarbonate (ABS-PC) / Aluminum
  • Color
    Color: Black - White
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 185 x 230 x 35 mm / 7.2’’ x 9’’ x 1.4’’ / 1.25 kg / 35.3 oz
  • Operating temperatures
    Operating temperatures: - 30°C to + 60°C / - 22°F to + 140°F
  • Protection
    Protection: IK10 certified vandal-proof front face structure
  • Resistance
    Resistance: IP65 certified - Weather, water, and dust resistant / Humidity: 5 - 95%

*Caution: information about the distance of communication: measured from the centre of the antenna, depending on the type of identifier, size of the identifier, operating environment of the reader, power supply voltage. RFID tag performance is influenced by its position on the windscreen, and depends on the windscreen type. The heat-reflective (or climate comfort) windscreens have a metallic film that blocks radio waves. Performances can be impaired. Use the non-treated area of the windscreen.

         Logos CE, FCC et UL

Part numbers

Picto flèche verte Read only



TTL:

SNA-Rx1-A/BT4-xx/1

RS232:

SNA-Rx2-A/BT4-5AB/1

RS485:

SNA-Rx3-A/BT04-7AB/1



Picto flèche rouge Controlled by protocol



SSCP® v1 & v2 - RS232:

SNA-Wx2-A/BT4-5AX/1

SSCP® v1 & v2 - RS485:

SNA-Wx3-A/BT4-7AX/1

OSDP™ v1 & v2 - RS485:

SNA-Wx3-A/BT4-7OS/1





x: versions = 4 - low band 865 - 868 MHz ; 5 - high band 902 - 928 MHz
